Multi-Tasking Machines

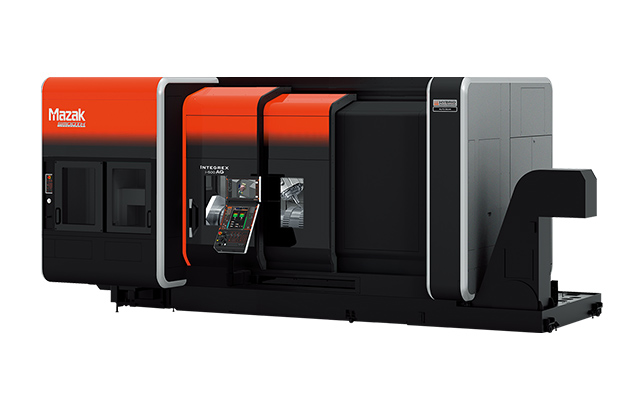

INTEGREX i NEO

Multi-tasking machine achieving high-efficiency and high-accuracy machining through the consolidation of production processes
  • The compact design milling spindle with minimum interference and a variety of the spindle specifications available
  • Machining area and Y-axis stroke to expand applicable workpieces size and shape
  • Equipped with a high-accuracy built-in motor turning spindle
  • A second spindle specification and lower turret specification available for process integration
  • Front tool magazine equipped for optimal tool setup for a wide variety of workpieces

Machine construction that achieves high-accuracy and high-productivity

Based on structural analysis, the best machine structure combining turning centers and machining centers was newly designed to achieve stable, high-accuracy machining over the long term. High positioning and machining accuracy are achieved over the entire Y-axis stroke.

Compact milling spindle and large machining area with minimal interference

  • 1: |430 mm
  • 2: | Y-axis 300 mm (i-250 NEO, i-350 NEO, i-450 NEO series)
    Y-axis 210 mm (i-100 NEO, i-200 NEO series)
  • 3: | X-axis 695 mm (i-250 NEO, i-350 NEO, i-450 NEO series)
    X-axis 535 mm (i-100 NEO, i-200 NEO series)

Milling spindle

Equipped with an ATC compatible milling spindle. The compact design minimizes interference and enlarges the machining area. The 12000 min-1 spindle can perform high efficiency machining of steel and castings. Optional 20000 min-1 spindle is designed for high speed machining of aluminum and small diameter machining. A wide variety of spindle specifications meet production requirements.

12000 min-1 [Standard]12 kW (16 HP) (40% ED)i-100 NEO series
18.5 kW (25 HP) (40% ED)i-200 NEO series
24 kW (32 HP) (40% ED)i-250 NEO, i-350 NEO, i-450 NEO series
12000 min-1 [Option]24 kW (32 HP) (40% ED)i-100 NEO, i-200 NEO series
20000 min-1 [Option]24 kW (32 HP) (40% ED)i-100 NEO, i-200 NEO, i-250 NEO, i-350 NEO, i-450 NEO series

Stable high-accuracy machining

Ai Thermal Shield

Based on spindle speed and temperature of the machine, Ai Thermal Shield suppresses changes in the cutting edge position. Stabilizes continuous machining accuracy through meticulous machine control that takes into account temperature changes, machine position, coolant ON/OFF, and other factors. Furthermore, by accumulating and learning data from subsequent measurements, thermal displacement compensation can be optimized for each machining environment to stabilize machining accuracy.

Heat displacement control

  • Spindle temperature control
    Temperature-controlled cooling oil is circulated around the spindle bearings and headstock.
    It suppressed the thermal displacement of the spindle to prevent lower machining accuracy.
  • X-, Y-, Z-axis ball screw core cooling (Standard Specification)
    Temperature-controlled cooling oil circulates through the ball screw cores to reduce heat and thermal effects from the servo motor.

Tool magazine at the front of the machine

The tool magazine, ideal for high-mix l low-volume production and situations requiring frequent tool changes, allows for the exchange of multiple tools from the front of the machine. It features a foldable temporary storage table at the lower front of the magazine, providing a place to temporarily set down tools brought in during the exchange process. Additionally, tool attachment and detachment can be performed easily and safely with a button reducing the risk of excessive force and tool drops. Tool shank types can be selected from the standard specification HSK-A63(T63) as well as optional CAPTO C6 and KM4X63.

CNC system

Innovative MAZATROL CNC system for higher productivity

MAZATROL SmoothAi provides unsurpassed productivity through even faster and higher precision control while elevating your production with AI and digital twin technology and advanced automation capabilities.

SOLID MAZATROL (Automatic programming)

MAZATROL programs are automatically generated from 3D CAD data. AI learns machining know-how from previously generated programs, automatically calculates the machining process, and generates the optimal program.

Required time for programming: 2.5 minutes

CUTTING ADVISOR

Machining simulation and visualization of the machining process based on the accumulated machining results helps optimize cutting conditions.

Chuck size: 6-inch

INTEGREX i-100 NEO
Chuck size6″
Max. machining diameterΦ23.62"
Max. machining length23.22"
Y-axis travel8.27"
Machine Specifications
  • Second Spindle
INTEGREX i-100S NEO
Chuck size6″
Max. machining diameterΦ23.62"
Max. machining length33.46"
Y-axis travel8.27"
Machine Specifications
  • Second Spindle
  • Lower Turret
INTEGREX i-100ST NEO
Chuck size6″
Max. machining diameterΦ23.62"
Max. machining length33.46"
Y-axis travel
8.27"
Machine Specifications

Chuck size: 8-inch

INTEGREX i-200 NEO
Chuck size8″
Max. machining diameterΦ23.62"
Max. machining length23.22"
Y-axis travel8.27"
Machine Specifications
  • Second Spindle
INTEGREX i-200S NEO
Chuck size8″
Max. machining diameterΦ23.62"
Max. machining length33.46"
Y-axis travel8.27"
Machine Specifications
  • Second Spindle
  • Lower Turret
INTEGREX i-200ST NEO
Chuck size8″
Max. machining diameterΦ23.62"
Max. machining length33.46"
Y-axis travel8.27"
Machine Specifications
INTEGREX i-250 NEO
Chuck size8″
Max. machining diameterΦ26.38"
Max. machining length39.80" / 59.80"
Y-axis travel11.81"
Machine Specifications
  • Second Spindle
INTEGREX i-250S NEO
Chuck size8″
Max. machining diameterΦ26.38"
Max. machining length39.80" / 59.80"
Y-axis travel11.81"
Machine Specifications
  • Second Spindle
  • Lower Turret
INTEGREX i-250ST NEO
Chuck size8″
Max. machining diameterΦ26.38"
Max. machining length39.80" / 59.80"
Y-axis travel11.81"
Machine Specifications

Chuck size: 10 inch

INTEGREX i-350 NEO
Chuck size10″
Max. machining diameterΦ26.38"
Max. machining length39.80" / 59.80" / 98.43"
Y-axis travel11.81"
Machine Specifications
  • Second Spindle
INTEGREX i-350S NEO
Chuck size10″
Max. machining diameterΦ26.38"
Max. machining length59.80" / 98.43"
Y-axis travel11.81"
Machine Specifications
  • Second Spindle
  • Lower Turret
INTEGREX i-350ST NEO
Chuck size10″
Max. machining diameterΦ670 mm
Max. machining length1519 mm
Y-axis travel300 mm
Machine Specifications

Chuck size: 12-inch

INTEGREX i-450 NEO
Chuck size12"
Max. machining diameterΦ26.38"
Max. machining length39.80" / 59.80" / 98.43"
Y-axis travel11.81"
Machine Specifications
  • Second Spindle
INTEGREX i-450S NEO
Chuck size12"
Max. machining diameterΦ26.38"
Max. machining length59.80" / 98.43"
Y-axis travel11.81"
Machine Specifications
  • Second Spindle
  • Lower Turret
INTEGREX i-450ST NEO
Chuck size12"
Max. machining diameterΦ26.38"
Max. machining length59.80"
Y-axis travel11.81"
Machine Specifications
