Vertical Machining Centers

VC-Ez

Designed and built in Kentucky, VC-Ez vertical machining centers are optimized for simple operation, fast and easy installation, enhanced ergonomics and thermal displacement compensation for stable and reliable part processing. The VC-Ez series feature MAZATROL SmoothEz (standard) and SmoothG (option) CNC controls, with model selection based on workpiece size, tooling requirements and production needs.

  • Hybrid MX Roller Guideway Systems on all linear axes
  • A pre-tensioned ball-screw system with support at each end
  • Thermal Shield technology ensures continuously stable machine
  • Compact designs that focus on ease of use and maintainability

Spindle

  • Precision-balanced spindle cartridges
  • Thermally controlled spindle minimizes growth and contraction for stable machining
  • Large headstock castings eliminate torsional displacement when heavy side-load milling

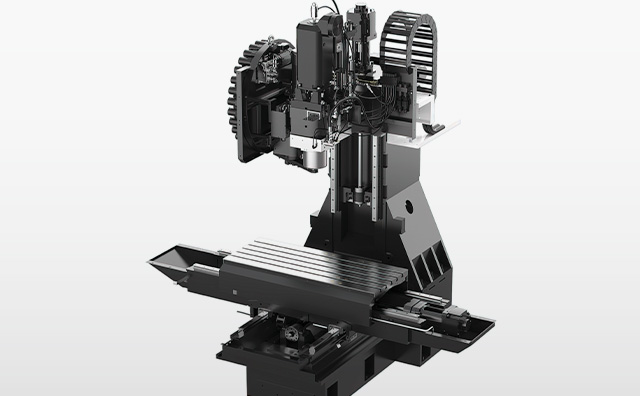

Structure

  • Heavy base, column, saddle, and headstock castings are all designed to support high-speed and high-torque cutting applications in mind
  • Casting temperatures and ambient thermal conditions are monitored to make axis adjustments for part-to-part consistency

MX Roller Guide System

  • More surface contact for greater load capacities
  • Higher positioning accuracy than boxways
  • Faster and greener than boxways with nearly twice the rapid traverse rate and less contamination in the machine coolant system

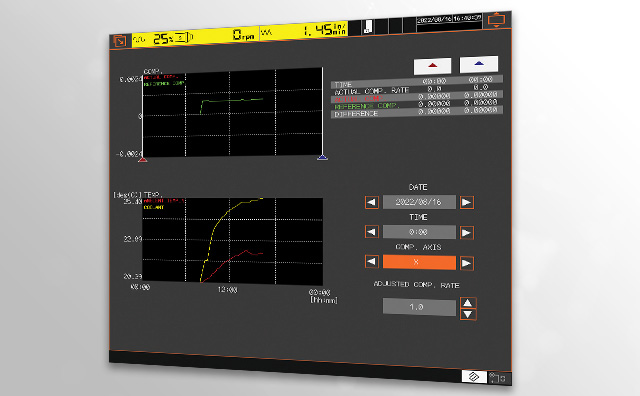

Thermal Displacement Control

Changes in ambient temperature and spindle start/stop operations can cause thermal expansion and contraction in the spindle. Thermal Shield monitors and compensates for these thermal changes to help maintain stable machining accuracy over extended periods of operation.

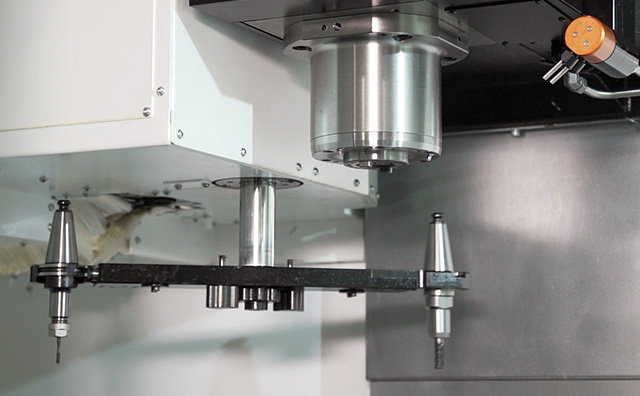

High Speed Automatic Tool Changer (ATC)

Our high-speed ATC system utilizes a reliable servo-driven cam actuation system to support rapid tool change and reduces noncut cycle time. Spindle utilization is also increased through bidirectional rotation of the magazine to the next required tool position, adding productivity to your facility.

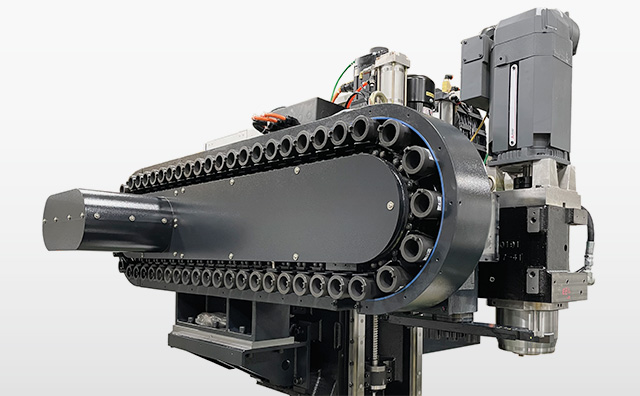

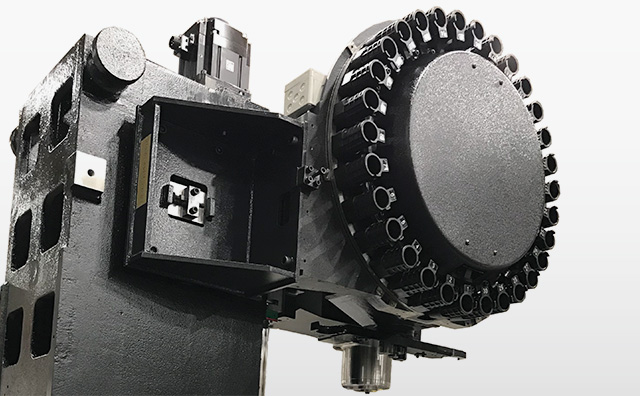

Tool Magazines

High-capacity CAT 40 tool magazines minimize setup times and add capacity for redundant tooling.

Standard: 30 tool
Optional: 50 tool

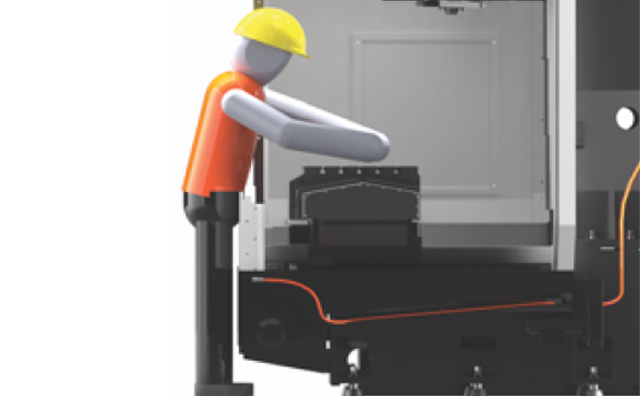

Ease of Use

The ergonomic design of the VC-Ez Series emphasizes ease of operation and maintainability:

  • Part loading and unloading: Top door opening allows access for crane-loading of parts

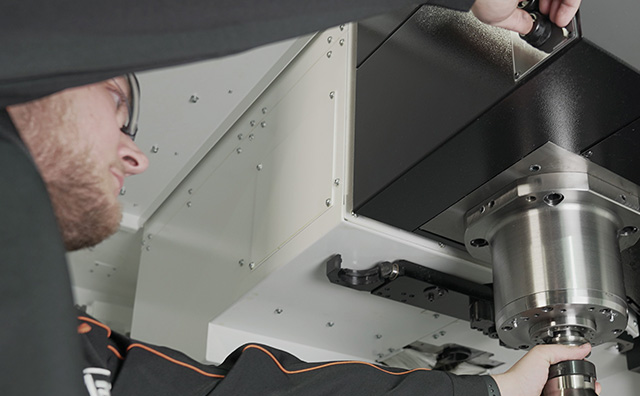

  • Easy tool loading/unloading: The tool clamp/unclamp switch is conveniently placed next to the spindle for each of efficient tool maintenance.

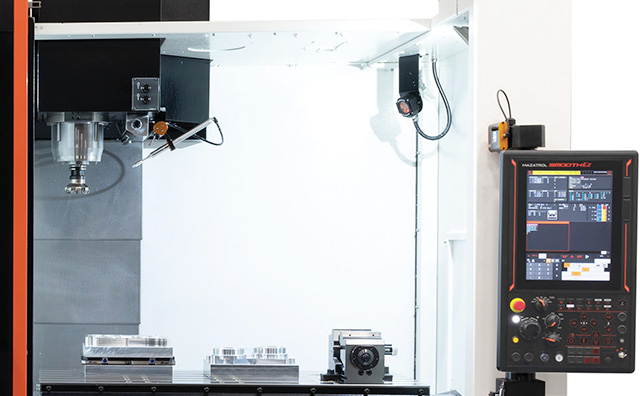

  • Wide door opening
  • Ease of maintenance and safety: Centralized placement of commonly checked items, such as all lubricants, facilitates daily maintenance
  • Table/spindle accessibility: New integrated chip collection system allows for a toe-kick on the entire front of the machine. The VC-Ez series machines feature an ergonomic floor-to-worktable height for operator ease of use.
  • Chip drawers: VC-Ez 16, VC-Ez 20 and VC-Ez 26 models come standard with two chip removal drawers on the front of each machine. Operators can pull open these drawers to improve access for manual chip removal requirements
  • MAZATROL SmoothEz and SmoothG Adjustable operator panel: The swivel mount of the CNC control panel allows for rotation toward the work envelop for easy setup and operation.
  • Removable covers: Covers are placed on both the left and right sides of the machines for easy chip removal and maintenance

MAZATROL Smooth Ez

Standard model CNC system for ease of operation

Ez Operation

  • Enhanced MAZATROL programming "QUICK MAZATROL"
  • 15-inch touch screen for intuitive operation
  • A screen designed for ease of use, with a display that can be customized.

Ez Machining

Equipped with heat displacement compensation system "Thermal Shield"
SMC (SMOOTH MACHINING CONFIGURATION) can adjust machining features according to the processing shape and method.

Ez Setup

By linking with the optional MAZATROL DX, virtual machines accurately duplicate the operation of machines on your factory floor. Work efficiency is improved by digital setup.

Flexible layout

You can customize the layout of the CNC screen, including the displayed data, menus, and on-screen keyboard.
Moving the keyboard to a position that suits the desired height reduces the load on the operator.

Customizable display

You can display any combination of information. By customizing a unique combination according to your work process, you can check the data and work with minimal screen transitions.

MAZATROL SmoothG

Optional

  • 19-inch high-performance touchscreen and dual-core, 800 MHz Celeron processor
  • Powerful graphics and applications to support programming and machine simulation
  • Enhanced MAZATROL programming “QUICK MAZATROL”
  • SMOOTH Machining Configuration functionality
  • 3D ASSIST allows the machine operator to import a solid model into MAZATROL and select features to automatically populate machining criteria in the unit.
  • Full G-code (EIA) editing capabilities

Optional Accessories

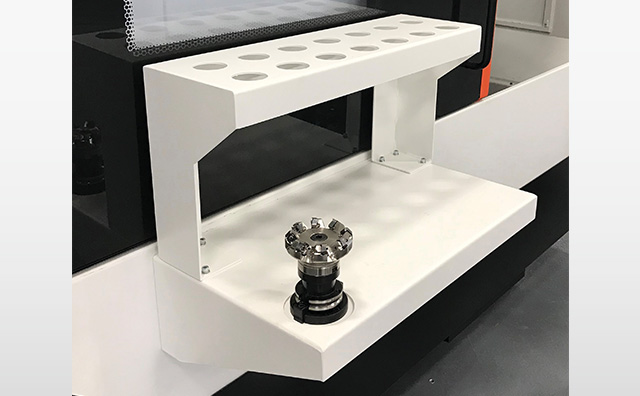

  • Ez Tool Station: Store tools outside the machine, to eliminate the need for separate tool carts.

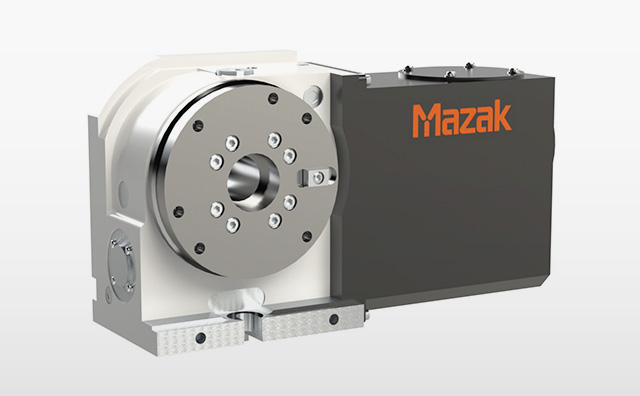

  • NC Rotary Station: Remove a completed part while the unfinished part is being machined
  • Automatic Tool Length Measuring: Plunger style tool length measuring device
  • Three-Color Status Light: Three colors indicate the machine’s current operating status
  • Telescopic Air Nozzle: Concentrates air to a desired position, optimizing chip evacuation while machining
  • Workpiece Touch Probing: Decrease setup time while allowing operators to inspect workpieces before removal from the machine
  • Automatic Tool Setter: Reduce setups by measuring both tool length and diameter
  • Coolant/Chip Removal Options
    • Flood Coolant
    • Through-Spindle Coolant
    • Through-Spindle Air Blast
    • Mazak SUPEFRLOW 1,000 psi
    • Programmable Coolant
    • Cover Coolant Including Handheld Coolant Nozzle
    • Mist Collector
    • Spiral Auger Conveyor
    • Chip Conveyor

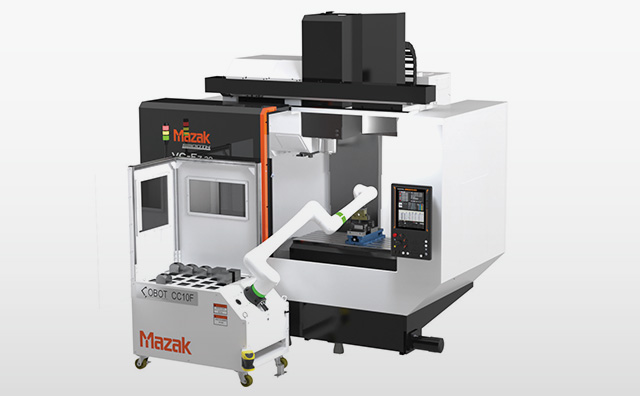

Automation

Custom Solutions

The Mazak Automation Systems department can custom-design a system that is right for your application.

  • Robot interface
  • Front operator auto door
  • Side, vertical, pneumatic auto door
  • Electrical and mechanical fixture interface
  • Advanced chip conveyor options
  • Extensive coolant offerings for lights-out machining

VC-Ez

VC-Ez 16
Tool shankCAT No.40
Max. spindle speed12000min-1 (rpm)
Table size37.4" × 14.17"
VC-Ez 20
Tool shankCAT No.40
Max. spindle speed12000 min-1 (rpm)
Table size49.21" × 19.37"
VC-Ez 20 2PC
Tool shankXXX
Max. spindle speedXXX
Table sizeXXX
VC-Ez 26
Tool shankCAT No. 40
Max. spindle speed12000 min-1 (rpm)
Table size55.12" × 24.02"
VC-Ez 32
Tool shankCAT No. 40
Max. spindle speed12000 min-1 (rpm)
Table size64.17" × 28.35"

Frequently Asked Questions (FAQ)

Mazak VC-Ez Vertical Machining Centers are designed and built in Mazak’s iSmart Factory in Kentucky.

The Mazak VC-Ez series comes with a standard MAZATROL SmoothEz Control or with the option of a MAZATROL SmoothG Control. Both controls support MAZATROL conversational programming and conventional G-code programming.

The VC-Ez Series includes the VC-Ez 16, VC-Ez 20, VC-Ez 26 and VC-Ez 32 and the VC-Ez 20 20 2PC two-pallet model. The series offers a range of table sizes, travels and spindle options to accommodate different workpiece sizes and machining requirements.

The VC-Ez Series offers CAT 40 and CAT 50 spindle configurations. CAT 40 models feature a standard 12,000 rpm spindle, with optional 15,000 and 20,000 rpm spindles. CAT 50 configurations feature a standard 6,000 rpm spindle and an optional 10,000 rpm spindle.

CAT 40 models feature a standard 30-tool magazine with an optional 50-tool capacity. CAT 50 models offer 24-tool magazines with a 40-tool option available.

Yes, the VC-Ez Series supports custom automation solutions tailored to specific production requirements. Available options include robot interfaces, automatic doors, advanced chip conveyors and coolant systems to support lights-out machining.
