Laser Processing Machines
FT-250
Laser processing machine for high-speed cutting of pipe material
- Equipped with Mazak SmoothCUT 6.0 kW laser oscillator
- Achieve high-speed, high-quality processing of long pipes and structural materials
- Reduce production lead times by completing all operations on one machine with the integration of tapping and drilling capabilities
- Extended loading and unloading capacity enables continuous processing
- Equipped with easy-to-operate CNC system, SmoothTUBE
High-quality and high-productivity cutting of various pipes
U-axis control for high-speed and high-precision cutting
The FT-250 is capable of processing round pipes with a maximum diameter of Φ152 mm and square pipes with a size of 125 mm per side. The standard 2.5D laser head also allows bevel cutting. A variety of materials, including mild steel, stainless, copper, brass, and aluminium, can be cut at high speed and precision with U-axis control.
High-quality cutting of Ｈ-shaped steel using C-axis control
By synchronising C-axis control and torch linear axis travel, processing various steel beam shapes, including H, I, and L is possible. High-precision processing of complex shapes that combine the joints of shaped steel can also be achieved with high-quality cutting surfaces.
Process integration to improve productivity in mass production
Rotary Tool Unit for drilling and tapping

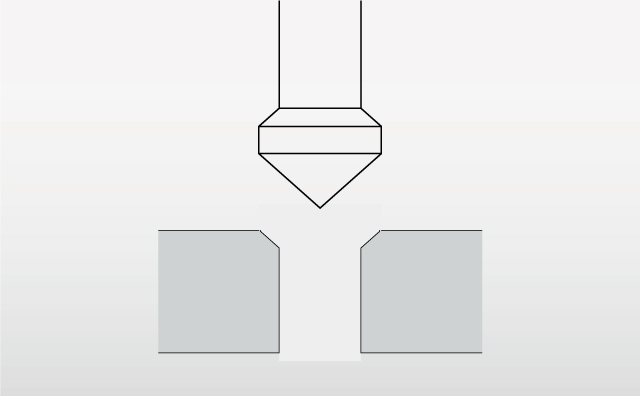

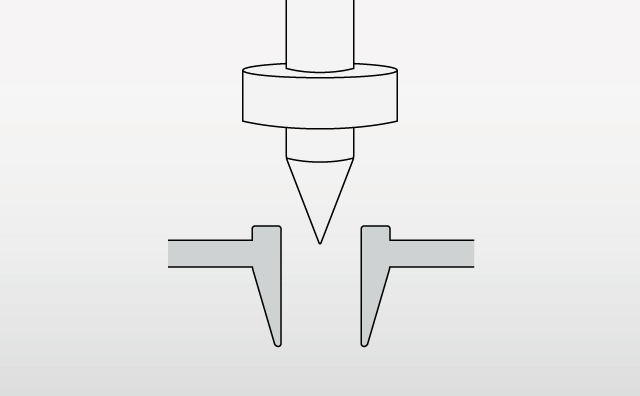

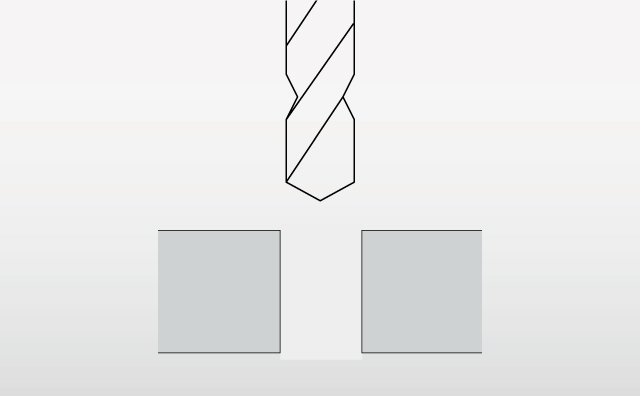

With a 13 positions auto tool changer that eliminates after process and increases productivity. Tools suitable for drilling, tapping, thermal drilling and chamfering can be attached to maximise productivity.
Reduce in-process time of pipe workpieces
By integrating the conventional pipe process, the FT-250 reduces inter-process transfers, waiting time, setup time, etc., and completes all processing on a single machine—shortening production lead time.
Reduce in-process time of pipe processing
Previous processing
1 : Cutting by saw
2 : Blanking
3 : Bevel cutting with grinder
4 : Drilling
5 : Hole tapping
A : FT-250 completes all processing on a single machine
Automation functions and machine design to achieve full automation of pipe mass production and high-productivity
With various automation functions such as calibration settings and nozzle cleaning, the productivity of pipe mass production operation is significantly improved.
Expanded setup and operation area
Chuck setup and maintenance areas are conveniently located next the SmoothTUBE control for operator accessibility and efficiency. The unloading conveyor cover located on the front of the machine slides open for easy access to perform setup and maintenance operations.
Selectable loading structure allows for long-term continuous processing
Materials are automatically loaded onto the machine by a high-capacity bundle loader from the rear side. After laser processing, the cut parts are automatically unloaded.
Structural steel and irregular workpiece geometry can be loaded manually.

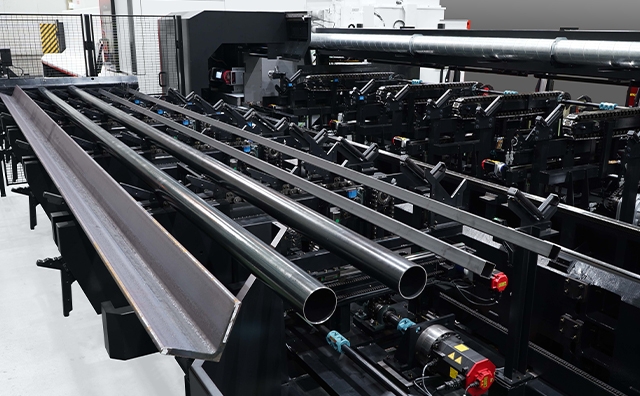

The V support conveyer loader is a loading system from the front side that allows you to supply different types of structural materials in accordance with your production schedule.
Up to five materials can be automatically supplied, enabling high-mix, low-volume production.
A combination of bundle loaders from the front side and V support conveyer loader from the rear side can be installed to suit your production requirements.
A variety of options that achieve high-accuracy and high added value
Work Centre Location/Inclination Compensation
Measures the OD of pipe material and automatically compensates for material distortion to ensure high precision positioning.
Visual Seam Locator
The weld seam of pipe material can be detected on the machine to determine the required radial position for cutting.
Internal Spatter Guard
The spatter guard protects the internal workpiece surface from spatters and burns, thereby preserving the quality of the workpiece.
Proprietary fiber laser oscillator achieves high quality and high productivity

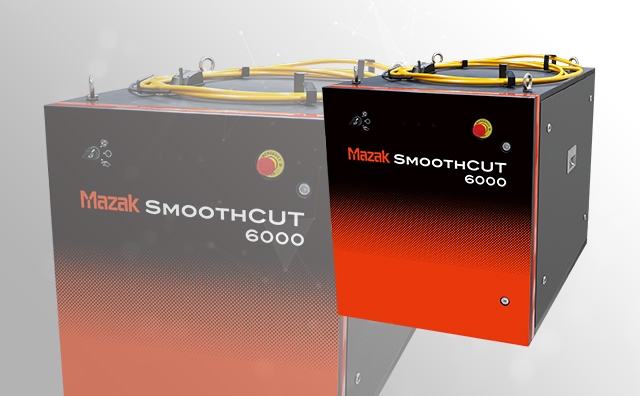

Mazak SmoothCUT
- Mazak SmoothCUT achieves reliable beam quality across a wide range of materials and thicknesses, with optimised cutting performance.
Equipped with a CNC system for pipe processing that significantly improves operability
SmoothTUBE, a new CNC system for pipe processing
The SmoothTUBE CNC system has a new graphical user interface specialised for tube processing, which ensures easier operation. It comes with a dual touch panel with large 21.5" screen. Condition setting of scheduled operation can be changed and reprocessing can be done on the CNC system easily. The screen configuration that assists operators throughout the production process on one screen and system linkage support efficient pipe processing.
Machine monitor and graphic menu
The Machine Monitor provides an overview of the machine with 3D images and important status updates, including the door's open / closed status. The Graphic Menu supports operators by providing easy access to the torch and machine operation menu. The machine's processing status are also displayed.
Completely supports the processing status
The lower monitor assists the operator throughout the production process. The processing process can be completed on one screen. It can be monitored efficiently using the newly designed interface. The operator can modify the condition settings of scheduled operations and even reprocess selected parts with ease on the CNC system.
FT-250 (V support conveyer loader specifications)
FT-250 (Bundle Loader Specifications)
| Round pipe Max. worksheet size | Φ152.4mm |
| Square pipe Max. worksheet size | 152.4mm × 152.4mm |
| Max. material length for loading | 6500 mm to 8000 mm* |
| Laser power | 6.0 kW |
FT-250 (V support conveyer loader + Bundle loader specifications)
| Round pipe Max. worksheet size | Φ254mm |
| Square pipe Max. worksheet size | 203.2mm × 203.203 |
| Max. material length for loading | 6500 mm - 12000 mm* |
| Laser power | 6.0 kW |
*Optional
