| Chuck size | 6″ |
| Max. Machining Diameter | Φ280 mm |
| Max. Machining Length | 340 mm |
CNC Turning Centres
QUICK TURN
Evolving best-selling high-performance CNC turning centres
- Built-in motor spindle and high-rigidity machine construction provide unsurpassed performance
- Turning, milling, Y-axis and second spindle specifications designed to meet your production requirements
- Wide range of chuck size and centre distance for both small and large machining
Chuck size
Evolving best-selling machines: QUICK TURN Series
Spindle specifications to meet your machining requirements
Built-in motor spindle, which is equipped on all models of series can perform heavy-duty machining of difficult machining materials or ferrous metals, as well as high-speed machining of non-ferrous materials such as aluminium. You can select the optimal spindle, including high-speed and high-torque specifications to meet your machining requirements.
Continuous machining of the first and second process with a second spindle
The second spindle can also perform high-speed and high-quality turning and milling with its built-in motor spindle. C-axis indexing in 0.0001° minimum increments is standard. Contouring is optionally available.
Y-axis machining for a wide range of applications
The long Y-axis stroke ensures high-accuracy and high-efficiency machining of complex workpieces. Multi-tasking machining of large workpieces is available in a compact machine.
NC tailstock and steady rest
The ball screw and servo motor drive allow for high-accuracy control of the tailstock position and the thrust can be set in 0.1 kN increments. Dead-centre type is suitable for light-duty applications, while built-in-centre type offers stability during heavy-duty cutting and high-speed turning. A steady rest can be mounted for shaft workpieces. It can be moved automatically by connecting it to the turret base.
High-productivity and high-accuracy
Machine construction and control technology provide even more stable machining accuracy
Structural analysis conducted during the design phase minimises distortion (displacement) during heavy-duty cutting and high-speed operation, ensuring high-accuracy over the long term.

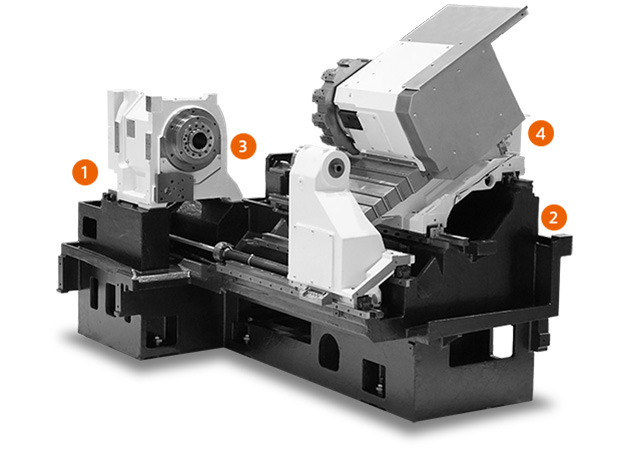

1: Built-in motor spindle
It is designed to have less causes of vibration as it has no gears or belts, so better roundness and surface accuracy can be acquired and power loss can be prevented. This simple structure leads to high-reliability, as it does not require maintenance such as tension adjustment, which is needed for belt-driven models.
2: Linear roller guides utilised on all axes.
Achieving high-speed, high-rigidity and a long service life, along with comprehensive measures to withstand repeated high-speed positioning, it enables highly reliable machining and maintenance-free operation over the long term.
3: C-axis positioning minimum indexing increment: 0.0001°
Main spindle and second spindle minimum C-axis positioning indexing increment is 0.0001° - standard equipment. Contouring is optionally available. (Standard for the main spindle of the “M” series).
4: High-accuracy scale feedback (Option)
Scale feedback for the X- and Z-axis is optionally available. This is ideal for high-precision circular interpolation cutting and continuous machining accuracy.
* Not available for the 100 series
Available turrets
Three types of turrets are available for different applications
The standard is a bolt-on turret, with a VDI turret available as an option. The drum turret is designed for the minimum interface. By using non-lift rotary indexing, high-speed turret clamping / unclamping can be performed without interference. Additionally, thanks to random selection / shortest path indexing, chip-to-chip time when changing tools is extremely fast.
Smooth Mill Drive – Turret milling integral spindle / motor
An integral spindle / motor is utilised for the turret milling spindle to minimise vibration for high accuracy. This enables stable cutting and high-accurate milling. Temperature controlled cooling oil is circulated around the spindle bearings and housing to minimise any thermal change.
A variety of optional automation systems can be chosen to increase productivity
Ez LOADER
The Ez LOADER is a space-saving automation system with collaborative robots. With the specialised software, the Ez LOADER eliminates tedious robot teaching tasks and can be easily set up by anyone.
Gantry Loader
The unique structure of the gantry loader provides unparalleled flexibility, enabling positioning conveyors on its left and right, adding measuring instruments, and connecting two machines. By adding automatic door and robot interfaces, the gantry loader can be retrofitted on already installed machines.
High-speed and high-accuracy simultaneous 4-axis CNC system
MAZATROL SmoothG
The touch panel is intuitive, and the 3D model display allows you to create programmes while checking the machining shape and process. It prevents programming errors and shortens programme creation time. G code programming is also available.
MAZATROL DX transforms the manufacturing process
MAZATROL DX is a digital service that revolutionises the work process. It supports your work from automatic programming to setup work on the machine. In addition, it has essential functions for part machining, such as ‘Quick Quote’ that automatically generates machining cost estimation.
QUICK QUOTE
Anyone can easily and quickly create quotations from 3D models. Machining cost, machining time and required tools are automatically calculated in about 30 seconds. The programme and other information used in the quotations is accumulated, so it can be used in later processes.
SOLID MAZATROLAutomatic / conversational programming
MAZATROL programmes are automatically generated from 3D models created with commercially available CAD/CAM software. An optimal programme is generated by learning the appropriate machining pattern for the machining shape from programmes created in the past.
SETUP GUIDE(Tools・Fixtures・Materials Mounting / Automatic Measurement)
Automatic generation of setup instructions enables smooth installation and measurement work. It supports efficient and reduces the number of errors for machine setup.
Spindle 15 kW (20 HP)
Boring bar shank diameter Φ32 mm / Turning tool shank size 20 mm
Spindle 15 kW (20 HP)
Boring bar shank diameter Φ40 / Turning tool shank size 25 mm
Spindle 18.5 kW (25 HP)
Boring bar shank diameter Φ40 / Turning tool shank size 25 mm
Spindle 26 kW (35 HP)
Boring bar shank diameter Φ50 / Turning tool shank size 25 mm
Spindle 30 kW (40 HP)
Boring bar shank diameter Φ50 / Turning tool shank size 25 mm
Spindle 37 kW (50 HP)
Boring bar shank diameter Φ50 / Turning tool shank size 32 mm
Photo: QUICK TURN 400M shown with optional equipment
