Multi-Tasking Machines

"INTEGREX" is a multi-tasking machine that combines the functions of a CNC turning center and a machining center, enabling highly accurate machining and high productivity. This "INTEGREX" is known as synonymous with multi-tasking machines.

Chuck size 6” to 12”

Series nameStandard chuck sizeMax. machining diameterMax. machining length

Simultaneous 5-axis Control

INTEGREX i NEO

6" / 8"Φ23.62"23.23" / 33.46"
8" to 12"Φ26.38"39.8" to 98.43"

Simultaneous 5-axis Control

INTEGREX i-H

6" / 8"Φ23.62"23.23" / 33.46"
8" to 12"Φ26.38"39.8" to 98.43"

Simultaneous 5-axis Control

INTEGREX i-150

6″
Φ13.39"15.16"

Simultaneous 4-axis Control Entry Model

INTEGREX j

8" to 12"Φ19.69"19.69" to 45.87"

Simultaneous 4-axis Control Entry Model

Environmentally-friendly

INTEGREX j-200 NEO

8"Φ19.69"19.69" to 40.00"

Chuck size 10” to 18”, Milling spindle No. 40 and No. 50 selectable

Series nameStandard chuck sizeMax. machining diameterMax. machining length

Simultaneous 5-axis Control

INTEGREX i-500

10″
Φ27.56"61.97" to 121.02"

Chuck size 15” to 32”

Series nameStandard chuck sizeMax. machining diameterMax. machining length

Simultaneous 5-axis ControlFor long and large diameter workpieces

INTEGREX e-H

15" to 32"Φ32.38" to Φ51.18"59.53" to 323.58"

Chuck size Φ24.02" to Φ98.43" (vertical)

Series nameTool shankMax. machining diameterMax. machining length

Vertical Simultaneous 5-axis Control For large workpieces

INTEGREX i-V

CAT No.40 / CAT No.50Φ28.74" to Φ66.93"39.37" to 65.55"

Double Column Simultaneous 5-axis Control For large workpiece

INTEGREX e-V

CAT No.50Φ57.09" to Φ137.8"62.99" to 70.87"

Double Column Simultaneous 5-axis Control Ram spindle Inside diameter deep hole processing

INTEGREX e-RAMTEC

CAT No.50 / CAPT C6Φ49.21" to Φ92.52"49.21" to 70.87"

Gear machining integrated with multi-tasking machines

Series nameStandard chuck sizeMax. machining diameterMax. machining lengthMax. machining height

Integration of gear machining and measurement

INTEGREX AG

8" to 12"Φ26.38" to Φ27.5643.35" to 60.2"-
Φ31.5" to Φ55.12"Φ41.34" to Φ90.55"-39.37" to 66.3"

5-axis Machining Centers

Including the "VARIAXIS" series, we have a wide range of lineup and support for automation systems to meet the needs of various customers. Multi-sided machining and complex 3D curved surface processing with simultaneous 5-axis control are possible with a single setup.

Tilt table type

Series namePallet sizeTool shankStandard Max. spindle speedMax. workpiece dimension

Environmentally-friendly

VARIAXIS i NEO

Φ27.56" × width 19.69"BIG-PLUS No.4012000 min-1 (rpm)Φ33.46" × 19.69"
Φ31.5" × width 24.8"BIG-PLUS No.5010000 min-1 (rpm)Φ33.46" × 19.69"
(Φ39.37" × 16.34")

Best Selling Machines

VARIAXIS i

Φ19.69" × width 15.75" to Φ23.62" × width 19.69"BIG-PLUS No.40 / CAT No.4012000 min-1 (rpm)Φ19.69" × 13.78" to Φ33.46" × 19.69"
Φ41.34" × width 31.5"BIG-PLUS No.50 / CAT No.5012000 min-1 (rpm)Φ49.21" × 35.43"

Compact Entry Model Automation available

VARIAXIS C

Φ23.62" × width 19.69"BIG-PLUS No.4012000 min-1 (rpm)Φ28.74" × 17.72"

Compact Entry Model

VARIAXIS j

Φ19.69" × width 15.75"BIG-PLUS No.4012000 min-1 (rpm)Φ19.69" × 13.78"

Simultaneous 5-axis Control

VC-Ez X

37.4" × 14.17" to 49.21" × 19.37"CAT No.4012000 min-1 (rpm)-

High-mix, low-volume production Automation available

VARIAXIS i-300 AWC

Clamp interface
HSK-A100 holder		BIG-PLUS No.4012000 min-1 (rpm)Φ13.78" × 12.4"

Tilt Spindle Type

Series namePallet sizeTool shankStandard Max. spindle speedMax. workpiece dimension

Tilt spindle (B-axis) Vertical For large workpieces

VORTEX i-V

24.8" × 24.8"CAT No.5010000 min-1 (rpm)Φ41.34" × 39.37" /
Φ49.21" × 55.12"
31.5" × 31.5"CAT No.5010000 min-1 (rpm)Φ59.06" × 59.06" /
Φ66.93" × 62.99

Tilt spindle (B-axis) Double Column For large workpieces

VORTEX e-V

31.5" × 31.5"
CAT No.5010000 min-1 (rpm)Φ57.09" × 62.99" /
Φ59.06" × 65.16"
from 39.37" × 39.27"CAT No.5010000 min-1 (rpm)Φ80.71" × 62.99" /
Φ90.55" × 66.3"

Tilt spindle (B-axis) Fixed table For long workpieces

VTC

137.8" × 32.28"CAT No.4018000 min-1 (rpm)Φ32.28" × 145.28"

Aerospace Industry Tilt spindle (A-axis/B-axis)

VORTEX II

127.56" × 31.89" / 157.48" ×49.21"
CAT No.5010000 min-1 (rpm)
127.56" × 31.89" × H28.54" /
157.48" × 58.27" × H28.94"

High-speed 5-axis machining Tilt spindle (A-axis/B-axis)

VORTEX HORIZONTAL PROFILER

157.48" × 49.21" / 157.48" ×62.99"
Spindle output
45 / 120 kW
(cont. rating)		26000 min-1 (rpm) /
30000 min-1 (rpm)		157.48" × 62.99" × H19.69"

Function-specific

Series namePallet sizeTool shankStandard Max. spindle speedMax. workpiece dimension

Horizontal High-speed 5-axis machining

HCR

19.69" × 19.69"BIG-PLUS No.4012000 min-1 (rpm)Φ27.56" × 25.31"

Die and MoldHigh-accuracy and Ultra-Precision Machining

UD

12.6" × 12.6"
HSK-E4045000 min-1 (rpm)Φ15.75" × 11.81"

Double Column (with W-axis)

Series nameTable sizeTool shankStandard Max. spindle speedMax. workpiece dimension

5-axis double column machining center Universal Head

VERSATECH

118.11" × 82.68" to
393.7" × 122.05"		CAT No.508000 min-1 (rpm)118.11" × 108.27" × H68.9" to
393.7" × 147.64" × H68.9"

CNC Turning Centers

A wide variety of machine specifications - from 2-axis models to turning centers with rotary tool spindle and second spindle - are available. It is possible to select the most suitable machine according to the processing size. We provide state-of-the-art solutions for mass production and high-mix, low-volume production needs.

CNC Turning Centers

Series nameStandard chuck sizeMax. machining diameterMax. machining length

Best Selling Machines

QUICK TURN

6" to 21"Φ11.02" to Φ22.83"13.39" to 81.91"

Cost-performance model

QT-Ez

8" to 12"16.13"13.5" to 18.94"

Cost-performance model

QTE

6" to 10"Φ13.78" to Φ15.35"11.22" to 41.85"

Compact 2-axis turning centers

QT-PRIMOS

5" to 8"Φ7.09" to Φ9.84"7.87" to 10.39"

Turret lathe for heavy-duty machining

SLANT TURN

18" to 24"Φ35.83"40" to 161.38"

Flat Turning Centers

Series nameStandard chuck sizeMax. machining diameterMax. machining length

Flat turning centers for heavy-duty cutting (medium-size)

TURNING CENTER

12"Φ22.83"81.89" / 117.52"

Flat turning centers for heavy-duty cutting (large-size)

POWER MASTER

15"Φ39.37"39.84"
Φ22.83"157.68"

CNC turning centers with multiple spindles & multiple turrets

Series nameStandard chuck sizeMax. machining diameterMax. machining length

Milling 2 Spindles and 2 Turrets

MULTIPLEX W

8″Φ12.6"7.09"
10″Φ16.93"8.86"

2 Spindles and 2 Turrets

DUAL TURN 200

8″Φ12.6"5.91"

Milling 2 Spindles and 3 Turrets

HQR NEO

8" / 10"Φ12.6"33.86"

Milling 2 Spindle and upper and lower turret

HQR

6″Φ11.81"24.41"
8" to 10"Φ13.54"33.86" / 52.17"

Milling  upper and lower turrets

QRX 50

6"Φ245 mm605 mm
8"Φ245 mm552 mm

Vertical CNC Turning Centers

Series nameStandard chuck sizeMax. machining diameterMax. machining length

Vertical turning centers Mirror model

MEGA TURN

12" to Φ59.06"Φ19.69" to Φ64.96"18.19" to 35.43"

Facing & Turning Head Type Machining Center

Series namePallet sizeTool shankMax. spindle speedMax. workpiece dimension

Unique turn-face headstock

ORBITEC 20

24.8"CAPTO C8600 min-1 (rpm)Φ41.34" × 51.18"

Swiss-Type Production Turning Machines

Swiss-type production turning machines have set the standard for efficient turning of smaller sized parts requiring both precision and productivity. The SYNCREX series of Swiss Turning Machines uses the Mazak High Damping Composite Casting (HDCC) which increases machines stability, reduces thermal growth and distortion, and helps reduce vibration at the cutting point. Mazak’s HDCC Technology assists in holding tighter tolerances, improved surface finishes, and obtaining longer tool life.

Swiss-Type Production Turning Machines

Series nameBar sizeNumber of axesTotal No. of Tools Standard

High-speed small, precise parts production

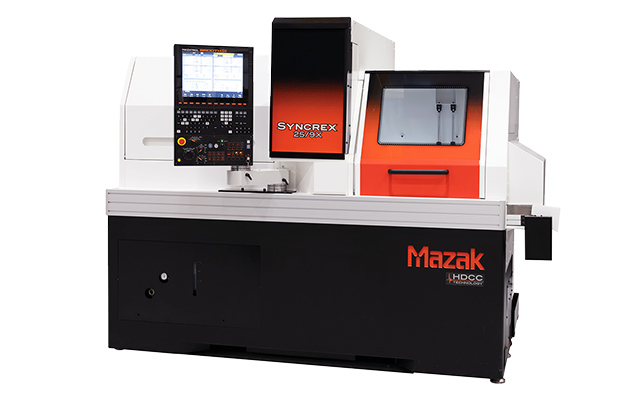

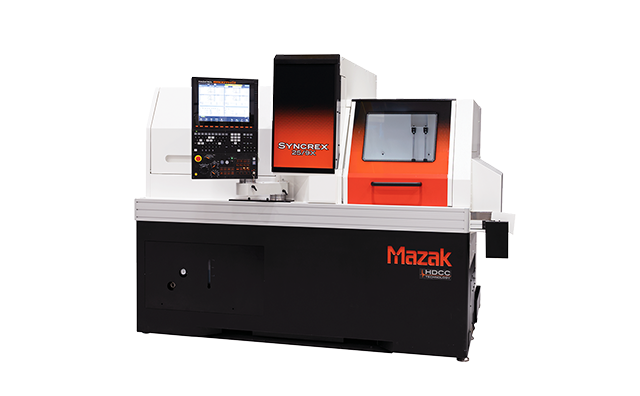

SYNCREX

Φ0.375" to Φ1.5"7 / 8 / 924 / 27 / 29 / 33 / 36 / 39

Vertical Machining Centers

A wide range of specification including the machine equipped with #30 spindle for compact floor space, with #40 spindle for high-speed cutting, and with #50 spindle for high-torque, heavy-duty cutting. We will propose the most suitable machine for the customer's production needs.

Vertical Machining Centers

Series nameTool shankMax. spindle speedTable size

Cost-performance model

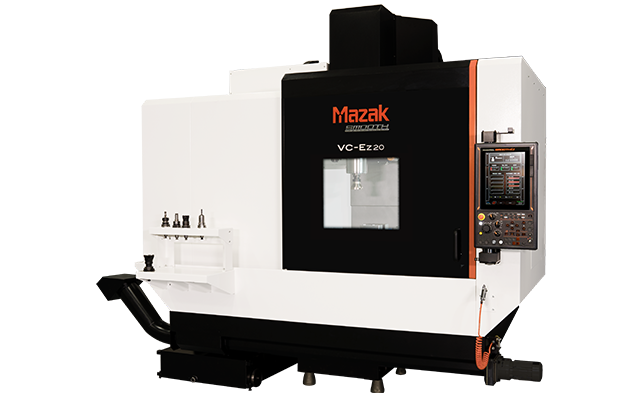

VC-Ez

CAT No.4012000 min-1 (rpm)37.4" × 14.17" to 64.17" × 28.35"

High rigidity and high torque Heavy duty cutting

MTV

CAT No.506000 min-1 (rpm)51.18" × 21.65" to 127.56" × 31.89"

Fixed table Space-saving

VTC

CAT No.4012000 min-1 (rpm)90.55" × 20.87"

Fixed table Long workpieces Ultra high speed

SVC

CAT No.4015000 min-1 (rpm)133.86" × 20.08" / 212.6" × 20.08"

Mass production line Pallet size 400 mm × 400 mm

UN

CAT No.3020000 min-1 (rpm)Max. workpiece size
Φ23.62" × 17.72" (vertical)
Φ23.62" × 19.69" (horizontal)

Double Column Machining Centers

Series nameTool shankMax. spindle speedTable size

Double Column High-accuracy and High productivity BT40

FJV (No.40)

CAT No.4012000 min-1 (rpm)31.5" × 18.11" / 47.24" × 21.65"

Double Column High-accuracy and High productivity BT50

FJV (No.50)

CAT No.5010000 min-1 (rpm)68.5" × 29.53" to 157.48" × 78.74"

Double Column High-accuracy and High productivity 5-Face machining

FJV 5 Face

CAT No.5010000 min-1 (rpm)68.5" × 29.53" to 157.48" × 78.74"

5-Face double column machining centers High-torque spindle Angle head

FJW

CAT No.506000 min-1 (rpm)157.48" × 78.74"

5-Face double column machining centersUniversal head Simultaneous 5-axis control

VERSATECH

CAT No.508000 min-1 (rpm)118.11" × 108.27" × H68.9" to 393.7" × 147.64" × H68.9"

Horizontal Machining Centers

A wide range of series are available to meet your production requirements, from high-mix, low-volume production to mass-produced parts processing. In addition to high-speed and high-accuracy machining, the NEO series improves environmental performance to achieve more efficient machining.

Horizontal Machining Centers

Series namePallet sizeTool shankMax. spindle speedMax. workpiece dimension

Environmentally-friendly

HCN NEO

15.75" × 15.75" / 19.69" × 19.69"
BIG-PLUS No.4012000 min-1 (rpm)Φ24.8" × 35.43" / Φ31.5" × 39.37"
24.8" × 24.8"
CAT No.5010000 min-1 (rpm)Φ41.34" × 51.18"

Best Selling Machines

HCN

up to 19.69" × 19.69"
CAT No.40 / CAT No.5010000 min-1 (rpm) to 12000 min-1 (rpm)Φ24.8" × 35.43" to Φ35.43" × 39.37"
from 31.5" × 31.5"
CAT No.5010000 min-1 (rpm)Φ57.09" × 57.09" to Φ94.49" × 78.74"

Difficult machining material High efficiency machining

MEGA

31.5" × 31.5"
CAT No.50
4000 min-1 (rpm)Φ57.09" × 57.09"

Quill axis Large workpieces

HCN-Q

49.21" × 39.37" to 62.99" × 49.21"CAT No.50
3000 min-1 (rpm)Φ92.52" × 70.87" to Φ118.11" × 94.49"

Ultra-High accuracy

µ

31.5" × 31.5"CAT No.5010000 min-1 (rpm)Φ80.71" × 57.09"

For Mass Production Line Construction

Series namePallet sizeTool shankMax. spindle speedMax. workpiece dimension

Mass production Space-saving

FF

19.69" × 19.69"
CAT No.4012000 min-1 (rpm)Φ28.35" × 28.15" / Φ28.35" × 34.25"
19.69" × 19.69"
CAT No.5010000 min-1 (rpm)Φ28.35" × 34.25"

Mass Production Line Construction Pallet size 400 mm × 400 mm

UN

15.75" × 15.75"

BT30

20000 min-1 (rpm)Φ23.62" × 19.69" (Horizontal)
Φ23.62" × 17.72" (Vertical)

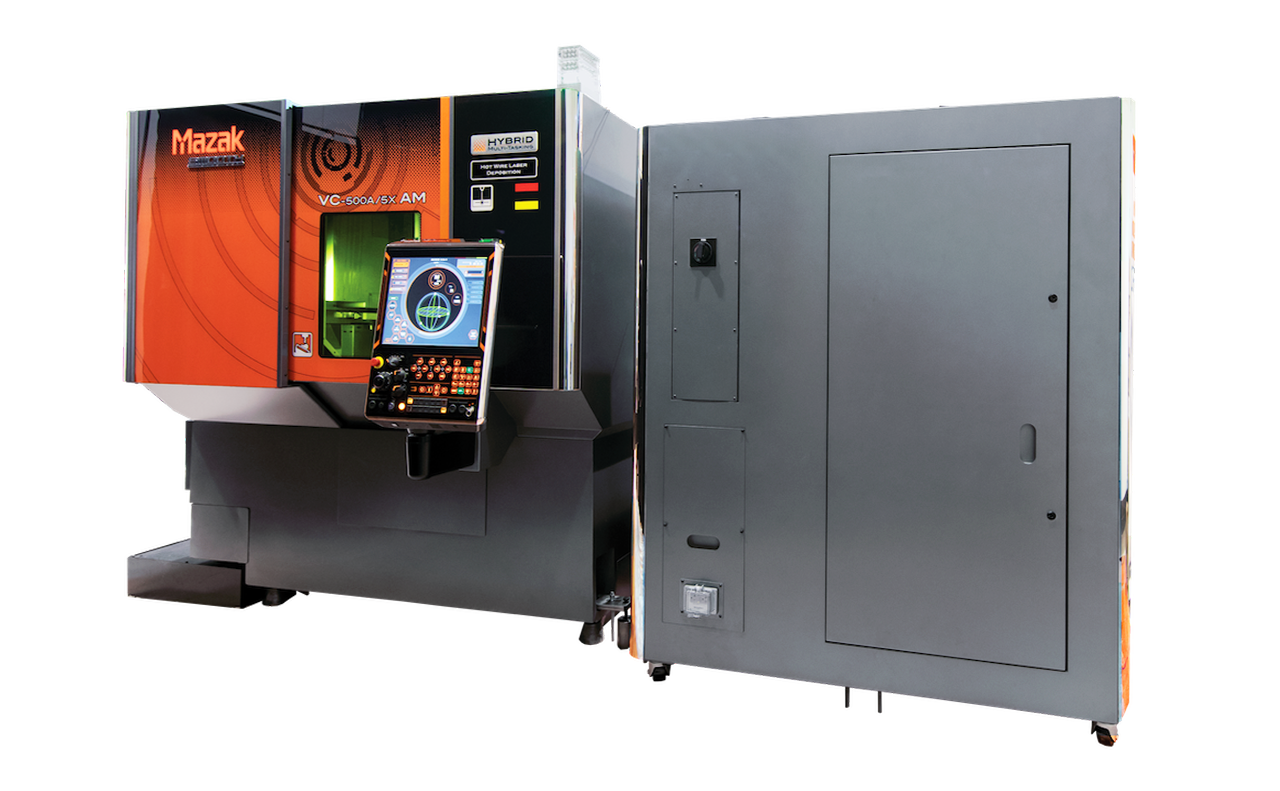

Additive Manufacturing (AM)

Advanced additive manufacturing (AM) technology integrated into multi-tasking machines and simultaneous 5-axis machining centers. Mazak's AM series transforms the manufacturing process. Deposit a different kind of material on base material for increased versatility.

See details

Friction Stir Welding (FSW)

Friction Stir Welding (FSW) is a joining process that uses frictional heat generated by a rotating tool to join two metal plates. Mazak has established its own FSW technology, which has been used to make innovative contributions such as miniaturizing EV components and improving the sealing durability of waterways.

See details
