| Max. cutting size (round) | Φ406 mm |
| Max. cutting size (square) | 305 mm × 305 mm |
| Max. material length for loading | 6180 mm* - 15180 mm* |
| Laser power | 5.0 kW / 6.0 kW |
Laser Processing Machines

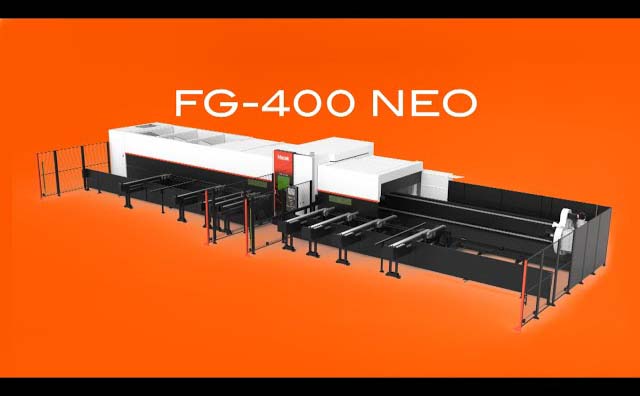

FG-400 NEO
3D fiber laser processing machine for long pipes and structural materials
- Continuous automatic machining of long pipes and structural materials completes in one machine
- 3D laser head cuts and joints complex shapes with high-accuracy
- High-speed cutting by energy-efficient fiber laser
- Equipped with SmoothTUBE CNC system
High-accuracy cutting by 3D laser head
Cut and joint broader range of materials and complex shape
The 3D laser head processes materials from various angles and directions. L, H, I-beam and channel can be processed as well as round and square pipe materials.
Protection torch
In the unlikely event of the torch striking the material, damage can be minimized as the torch itself tilts.
All cutting process in one machine
Automatic loading of materials and unloading of finished parts
The standard model can load and unload materials and finished parts up to 8 m. Optional 6 m, 12 m, and 15 m loading / unloading units are available.
2: Unload finished parts and offcuts automatically
High-speed feedrate drastically reduces processing time
| FG-400 NEO | |
|---|---|
| X-axis | 60 m/min |
| Y-axis | 36 m/min |
| Z-axis | 30 m/min |
| C-axis | 17400 deg/min |
High-accuracy cutting while minimizing vibration
Four chucks move and rotate simultaneously to prevent material distortion. Various supporters suppress vibration and provide high-accuracy cutting.
Tapping of long materials by the same machine
By attaching the optional rotary-tool spindle unit, complete all cutting processes from 3D cutting to tapping in the same machine. The hole to be tapped is cut by the laser and tapped for shorter production lead time and higher productivity. FG-400 NEO can accommodate up to M16 (5/8 UNC and UNF), M20 (3/4 UNC and UNF) in mild steel.
Advantages of process integration
All processes from materials to finished products, including transportation, cutting, bevel cutting, drilling, tapping, and punching, are completed on a single machine. Streamlining production processing and performance, our laser machines offer a wide range of benefits including a reduction in machine setup, production lead time, in-process inventory, the number of machines, fixtures, operators, floor space and higher precision.
Higher efficiency with high-quality fiber laser
The advanced technology of the fiber laser provides higher productivity and higher efficiency
Capable of processing a variety of materials, including highly reflective materials
Fiber laser is capable of high-speed cutting of mild steel, which is difficult to process with CO2 laser processing machine. It stably cut even highly reflective materials such as aluminum, copper, and brass.
Beam Diameter Control function / Variable Beam Mode function
The Beam Diameter Control function automatically adjusts to the optimum beam diameter for each material and thickness. Machines are also equipped with Variable Beam Mode function which controls the divergence angle of the laser beam from the fiber resonator. Together, these two technologies provide faster cutting speed for thin material as well as superior cutting quality for thick material.
A wide range of optional equipment to achieve high-accuracy and high-productivity machining.
SmoothTUBE, a new CNC system for pipe processing
The SmoothTUBE CNC system features a new graphical user interface specialized for tube processing, which ensures easier operation. The control comes with a dual touch panel and large 21.5" screen. Condition setting of scheduled operations can be updated and reprocessing can be performed on the CNC system easily. The screen configuration assists operators throughout the production process and supports efficient pipe processing.
Upper monitor
Machine monitor and graphic menu
The Machine Monitor provides an overview of the machine with 3D images and important status updates, including the door's open / closed status. The Graphic Menu supports operators by providing easy access to the torch and machine operation menu. The machine's processing status are also displayed.
Lower monitor
Completely supports the processing status
Supporting the process from production schedule creation to processing The processing process can be completed on one screen. It can be monitored efficiently using the newly designed interface. The operator can modify the condition settings of scheduled operations and even reprocess selected parts with ease on the CNC system.
Reference Video
FG-400 NEO
*Optional
