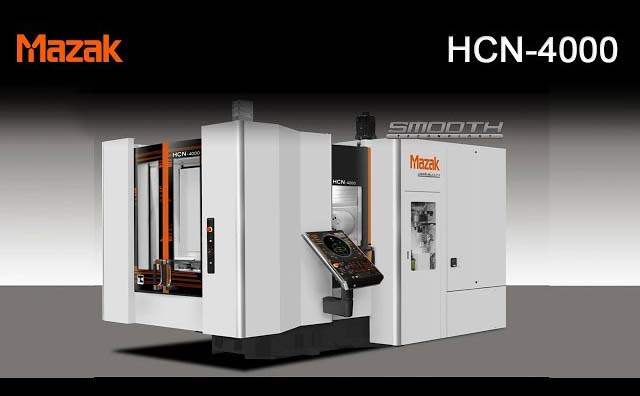

Horizontal Machining Centers

HCN

A wide variety of spindles and high rigidity structure for efficient machining

Spindle specifications to meet a wide variety of machining requirements
The high rigidity bed is reinforced with strategically located ribs to ensure stability
Advanced factory automation equipment available for higher productivity

Pallet size

Largest X, Y, and Z-axis stroke and workpiece size in its class

HCN-5000S

Pallet dimensions	500 mm × 500 mm
X-axis / Y-axis / Z-axis stroke	730 mm / 730 mm / 800 mm

HCN-5000/50

Pallet dimensions	500 mm × 500 mm
X-axis / Y-axis / Z-axis stroke	730 mm / 730 mm / 800 mm

HCN-5000/50S

Pallet dimensions	500 mm × 500 mm
X-axis / Y-axis / Z-axis stroke	730 mm / 730 mm / 800 mm

HCN-6000

Pallet dimensions	500 mm × 500 mm
X-axis / Y-axis / Z-axis stroke	800 mm / 800 mm / 800 mm

HCN-8800

Pallet dimensions	800 mm × 800 mm
X-axis / Y-axis / Z-axis stroke	1400 mm / 1200 mm / 1325 mm

HCN-10800

Pallet dimensions	1000 mm × 1000 mm
X-axis / Y-axis / Z-axis stroke	1700 mm / 1400 mm / 1525 mm

HCN-12800

Pallet dimensions	1250 mm × 1250 mm
X-axis / Y-axis / Z-axis stroke	2200 mm / 1600 mm / 1850 mm

High-rigidity machine construction for stable machining performance

High-rigidity bed

The high rigidity bed is reinforced with strategically located ribs to ensure stability, minimizing the change in bed posture during X and Z-axis travel.

X-axis slanted design

The mounting surfaces of the X-axis linear guide rails are at different heights to ensure high rigidity and lower total weight. High-speed, high-precision positioning is achieved by driving close to the center of gravity.

Linear roller guides utilized on all axes

The HCN series uses linear roller guides on the X-, Y- and Z-axis for high accuracy and heavy-duty machining.

Cone coupling

The pallet and table are clamped by cone couplings to ensure high rigidity and high repeatable positioning accuracy when changing pallets.

The single pallet of the HCN-5000S and HCN-5000/50S is bolted directly to the machine table.

Spindle specifications for any workpiece material requirement

Spindle variations that allow machining under optimal cutting condition

HCN-5000S

Standard

BT40, built-in motor spindle, grease lubrication

Speed	12000 min^-1
Output	AC 18.5 kW (25 HP) [40％ ED]
Output	AC 15 kW (20 HP) [Cont. rating]
Max. torque	82 N・m (8.3 kgf・m ) [40％ ED]

High torque (Option)

BT40, built-in motor spindle, oil & air lubrication

Speed	14000 min^-1
Output	AC 30 kW (40 HP) [40％ ED]
Output	AC 22 kW (30 HP) [Cont. rating]
Max. torque	183 N・m (18.6 kgf・m ) [40％ ED]

High speed (Option)

BT40, built-in motor spindle, oil & air lubrication

Speed	18000 min^-1
Output	AC 35 kW (47 HP) [40% ED]
Output	AC 26 kW (35 HP) [Cont. rating]
Max. torque	84 N・m (8.5 kgf・m) [40% ED]

High speed (Option)

HSK-F63, built-in motor spindle, oil & air lubrication

Speed	30000 min^-1
Output	AC 23 kW (30.6 HP) [40% ED]
Output	AC 15 kW (20 HP) [Cont. rating]
Max. torque	22 N・m (2.2 kgf・m) [40% ED]

HCN-5000/50, HCN-5000/50S

Standard

BT50, built-in motor spindle, oil & air lubrication

Speed	10000 min^-1
Output	AC 30 kW (40 HP) [40％ ED]
Output	AC 22 kW (30 HP) [Cont. rating]
Max. torque	216 N・m (22.02 kgf・m) [40% ED]

HCN-6000

Standard

BT50, built-in motor spindle, oil & air lubrication

Speed	10000 min^-1
Output	AC 37 kW (50 HP) [30 min. rating]
Output	AC 30 kW (40 HP) [Cont. rating]
Max. torque	350 N・m (35.68 kgf・m) [30 min. rating]

High torque (Option)

BT50, built-in motor spindle, oil & air lubrication

Speed	7000 min^-1
Output	AC 30 kW (40 HP) [30 min. rating]
Output	AC 22 kW (30 HP) [Cont. rating]
Max. torque	442 N・m (45.07 kgf・m) [30 min. rating]

HCN-8800, HCN-10800, HCN-12800

Standard

Built-in motor spindle, oil & air lubrication

Speed	10000 min^-1
Output	AC 37 kW (50 HP) [30 min. rating]
Output	AC 30 kW (40 HP) [Cont. rating]
Max. torque	350 N・m (35.68 kgf・m) [30 min. rating]

High speed (Option)

Built-in motor spindle, oil & air lubrication

Speed	16000 min^-1
Output	AC 37 kW (50 HP) [30 min. rating]
Output	AC 30 kW (40 HP) [Cont. rating]
Max. torque	179 N・m (35.68 kgf・m) [30 min. rating]

High torque (Option)

Built-in motor spindle, oil & air lubrication

Speed	8000 min^-1
Output	AC 37 kW (50 HP) [30 min. rating]
Output	AC 30 kW (40 HP) [Cont. rating]
Max. torque	609 N・m (62.09 kgf・m) [30 min. rating]

High torque (Option)

Built-in motor spindle, oil & air lubrication

Speed	6000 min^-1
Output	HCN-8800	AC 37 kW (50 HP) [40% ED]
	HCN-10800	AC 30 kW (40 HP) [Cont. rating]
	HCN-12800	AC 56 kW (75 HP) [40% ED]
		AC 45 kW (60 HP) [Cont. rating]
Max. torque	955 N･m (97.38 kgf･m) [40% ED]

Wide variety of factory automation equipment available for single machines to production lines

Robot integration

Interface for connecting an external robot for workpiece loading / unloading to / from automatic hydraulic fixtures is optionally available.

Field network available

PALLETECH SYSTEM

The scalable automation system, which consists of pallet stockers, a pallet loader robot, and loading stations, can be flexibly expanded to accommodate increases in production. Pallets can be stored in a flat arrangement or in a two-leveled or three-leveled arrangement to save floor space.
