Multi-Tasking Machines

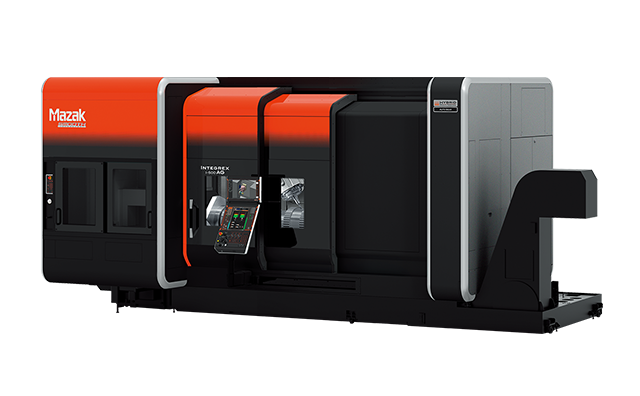

INTEGREX AG
Hybrid multi-tasking machines with gear cutting and measurement
- Gear process integration for high accuracy machining and reduction of in-process time
- Three types of gear machining methods (gear skiving, hobbing, and endmilling) are integrated to meet diverse needs, from high-mix low-volume production to mass production
- Conversational programming for cutting tool paths and measurement can be easily made in a short period of time
Max. machining diameter
The integration of INTEGREX with gear cutting and measurement
Three gear machining methods - gear skiving, hobbing, and endmilling - are integrated into this single machine. It meets your production needs, ranging from flexible machining using general-purpose end mills to mass production using specialized tools. Furthermore, gear measurement can be performed in the machine.
- 1: |5-axis machining
- 2: |Gear cutting
- 3: |Gear measurement
Produce gear without dedicated gear cutting machine
Gear skiving
Improved productivity thanks to high speed gear skiving
- High-accuracy gear skiving by unique control technology of INTEGREX AG
- The precision of the rotational synchronization between the turning spindle and milling spindle is maintained even at the maximum rotational speed of each spindle
- Gear skiving can be performed using a small diameter cutter and a small diameter workpiece, or using a carbide cutter
Jet stream chuck coolant (optional)
Jet stream chuck coolant reduces chip bite into the gear surface during internal gear skiving and extends the tool life. The nozzle adjustment allows you to rotate the scattering angle (40° to 95°).
2: Machining with Jet stream chuck
Hobbing
Achieved ISO Class 7 machining accuracy
Smooth Gear Hobbing, machining programming support software for Gear hobbing, is equipped with a "hob shift function" that shifts the processing point of the hob cutter for each pass, extending the cycle until the hob cutter needs to be resharpened, and a "tooth lead modification function" that adjusts the tooth contact point of the machined gear.
Endmilling
Gear machining can use commercial endmills.
Even if specialized tools such as hob cutters are not available, endmills can be used as substitutes to create the shape.
Using Smooth Gear milling software, gear teeth can be cut one by one by a commercial endmills. It is equipped with a "tooth profile modification function" and a "tooth trace modification function" to adjust the tooth contact of the machined gear. The high-precision function of the machine achieves processing accuracy of ISO Class 5.
In-process time reduction
Comparison of hobbing by multi-tasking machine and endmilling by INTEGREX AG
In the case of parts machining for high-mix, low-volume production, the specialized tools such as hob cutters requires a lot of time just to prepare the tools and jigs. INTEGREX AG can machine a wide variety of gears with commercially available end mills, thus significantly reducing manufacturing lead times.
1: Preparation of tools and jig
2: Programming
3: Gear machining
4: Machining
Gear tooth location for in-phase positioning of other machined features
Gear tooth radial in-phase location
After gear skiving or hobbing, the center angle of the gear tooth groove is identified. Based on the identified phase angles, the machine can be automated up to keyway machining, drilling, and deburring with a ball endmill. The central angle of the gear tooth groove is identified on the end face or tip circle while determining the presence or absence of teeth. The actual identification accuracy is 0.005 degrees (16 μm on a 360 mm diameter circle). The probe posture and probe feed direction without interference can be set according to the shape of the target workpiece and the stylus contact points.
Supporting high-quality production with pitch measurements using a touch probe
Pitch measurement
After machining, pitch measurements are performed with using a touch probe. In addition to the single pitch error, cumulative pitch error and tooth space runout, the pitch circle center is also calculated.
Gear face scanning is optionally available. Visualize the machined gear face by measuring the gear profile and lead.
Gear profile and gear lead measurement*
The gear profile and gear lead are measured immediately by attaching the scanning probe after machining.
The number of setups required for transporting the machined workpiece to the 3D measuring machine for inspection, and then back to INTEGREX for additional machining, is reduced.
The measurement results are displayed on the MAZATROL SmoothAi display, and the gear tooth surface can be viewed.
* Option
Gear tooth surface measurement with scanning probe
MAZATROL SmoothAi displaying measurement results
Measurement results on the CNC display can be output as an image (PNG file) with a single touch.
Conversational programming for high-accuracy gear cutting and measurement
Programming are created easily and quickly by simply setting up the various parameters and feedrates indicated in the drawings while viewing graphical guidance. This supporting software creates dedicated G-code programs, and further generates machining and measurement paths automatically. Gear cutting and measurement are performed by pressing the cycle start button.
Comparison with conventional processing methods
Without SMOOTH GEAR MILLING (option)
- step-1
- step-2
- step-3
- step-4
With SMOOTH GEAR MILLING (option)
Just the input of the necessary information and machining conditions into the CNC system is needed to begin machining.
- step-1
- step-2
- step-3
- step-4
Reference Video
INTEGREX i-250 NEO AG
INTEGREX i-250S NEO AG
| Chuck size | 8″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1011 mm / 1519 mm |
INTEGREX i-250ST NEO AG
| Chuck size | 8″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |

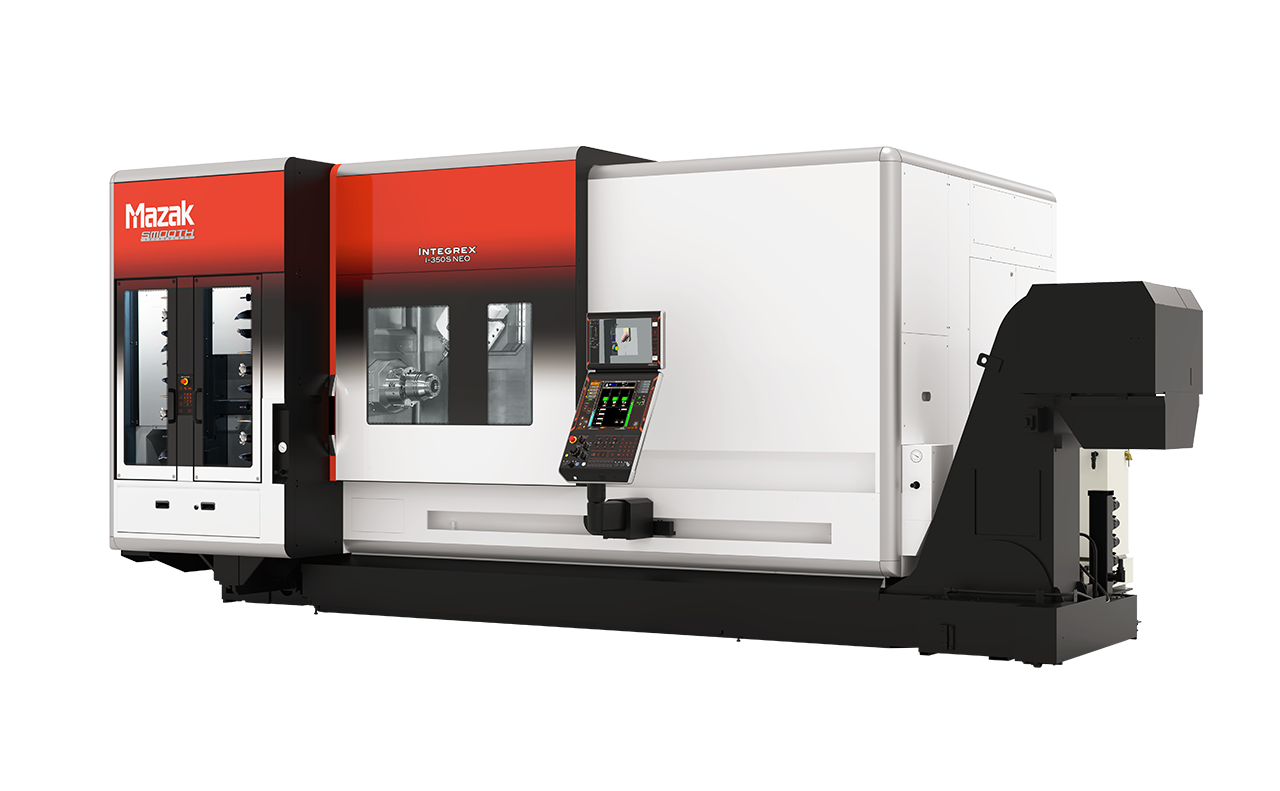

INTEGREX i-350 NEO AG
| Chuck size | 10″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1011 mm / 1519 mm |
INTEGREX i-350S NEO AG
| Chuck size | 10″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-350ST NEO AG
| Chuck size | 10″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-450 NEO AG
| Chuck size | 12" |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1011 mm / 1519 mm |
INTEGREX i-450S NEO AG
| Chuck size | 12" |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-450ST NEO AG
| Chuck size | 12" |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-250H AG
| Chuck size | 8″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1011 mm / 1519 mm |
INTEGREX i-250H S AG
| Chuck size | 8″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1011 mm / 1519 mm |
INTEGREX i-250H ST AG
| Chuck size | 8″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-350H AG
| Chuck size | 10″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1011 mm / 1519 mm |
INTEGREX i-350H S AG
| Chuck size | 10″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-350H ST AG
| Chuck size | 10″ |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-450H AG
| Chuck size | 12" |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1011 mm / 1519 mm |
INTEGREX i-450H S AG
| Chuck size | 12" |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-450H ST AG
| Chuck size | 12" |
| Max. machining diameter | Φ670 mm |
| Max. machining length | 1519 mm |
INTEGREX i-500 AG
| Chuck size | 10″ |
| Max. machining diameter | Φ700 mm |
| Max. machining length | 1529 mm |
INTEGREX i-500S AG
| Chuck size | 10″ |
| Max. machining diameter | Φ700 mm |
| Max. machining length | 1529 mm |
INTEGREX i-500ST AG
| Chuck size | 10″ |
| Max. machining diameter | Φ700 mm |
| Max. machining length | 1529 mm |

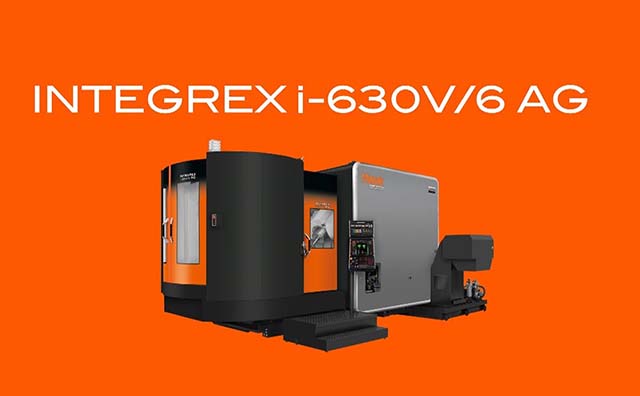

INTEGREX i-630V/6 AG
| Chuck size | Φ800 mm |
| Max. machining diameter | Φ1050 mm |
| Max. machining height | 1000 mm |
INTEGREX i-630V/6S AG
| Chuck size | Φ800 mm |
| Max. machining diameter | Φ1250 mm |
| Max. machining height | 1400 mm |

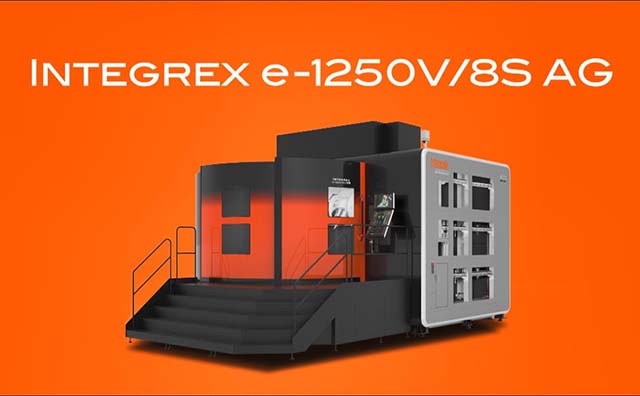

INTEGREX e-1250V/8 AG
| Chuck size | Φ1000 mm |
| Max. machining diameter | Φ1450 mm |
| Max. machining height | 1600 mm |
INTEGREX e-1250V/8S AG
| Chuck size | Φ1000 mm |
| Max. machining diameter | Φ1500 mm |
| Max. machining height | 1655 mm |
INTEGREX e-1600V/10 AG
| Chuck size | Φ1400 mm |
| Max. machining diameter | Φ2050 mm |
| Max. machining height | 1600 mm |
INTEGREX e-1600V/10S AG
| Chuck size | Φ1400 mm |
| Max. machining diameter | Φ2300 mm |
| Max. machining height | 1684 mm |
