CNC Turning Centers

QUICK TURN

Evolving best-selling high-performance CNC turning centers
  • Built-in motor spindle and high rigidity machine construction provide unsurpassed performance
  • Turning, milling, Y-axis and second spindle specifications designed to meet your production requirements
  • Wide range of chuck size and center distance for both small and large machining
QUICK TURN image

Evolving best-selling machines: QUICK TURN series

Spindle specifications to meet your machining requirements

Built-in motor spindle, which is equipped on all models of series can perform heavy duty machining of difficult machining materials or ferrous metals, as well as high speed machining of non-ferrous materials such as aluminum. You can select the optimal spindle, including high speed and high torque specifications to meet your machining requirements.

Continuous machining of the first and second process with a second spindle

The second spindle can also perform high-speed and high-quality turning and milling with its built-in motor spindle. C-axis indexing in 0.0001° minimum increments is standard. Contouring is optionally available.

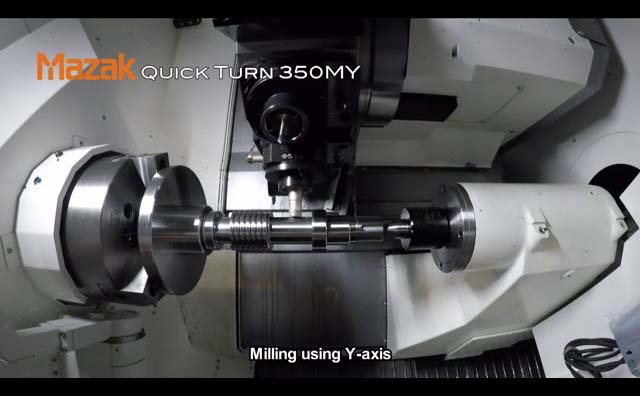

Y-axis machining for a wide range of applications

The long Y-axis stroke ensures high-accuracy and high-efficiency machining of complex workpieces. Multi-tasking machining of large workpieces is available in a compact machine.

NC tailstock and steady rest

The ball screw and servo motor drive allow for high-accuracy control of the tailstock position, and the thrust can be set in 0.1 kN increments. Dead-center type is suitable for light-duty applications, while built-in-center type offers stability during heavy-duty cutting and high-speed turning. A steady rest can be mounted for shaft workpieces. It can be moved automatically by connecting it to the turret base.

NC tailstock
Steady rest

High-productivity and high-accuracy

Machine construction and control technology provide even more stable machining accuracy

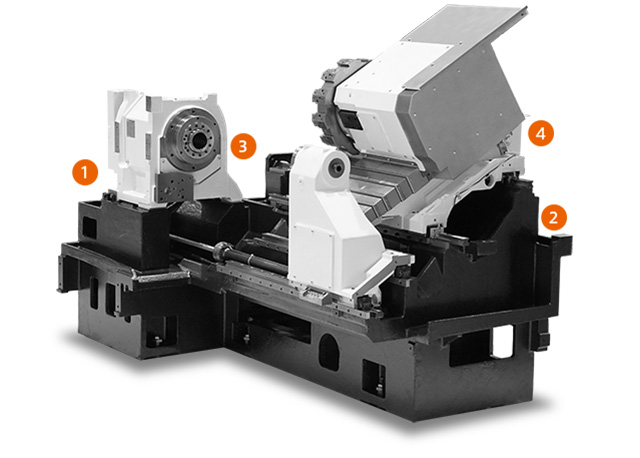

Structural analysis conducted during the design phase minimizes distortion (displacement) during heavy-duty cutting and high-speed operation, ensuring high-accuracy over the long term.

1: Built-in motor spindle

It is designed to have less causes of vibration as it has no gears or belts, so better roundness and surface accuracy can be acquired and power loss can be prevented. This simple structure leads to high reliability, as it does not require maintenance such as tension adjustment, which is needed for belt-driven models.

2: Linear roller guides utilized on all axes

Achieving high-speed, high-rigidity, and a long service life, along with comprehensive measures to withstand repeated high-speed positioning, it enables highly reliable machining and maintenance-free operation over the long term.

3: C-axis positioning minimum indexing increment: 0.0001°

Main spindle and second spindle minimum C-axis positioning indexing increment is 0.0001° - standard equipment. Contouring is optionally available. (Standard for the main spindle of the “M” series).

4: High-accuracy scale feedback (Option)

Scale feedback for the X- and Z-axis is optionally available. This is ideal for high-precision circular interpolation cutting and continuous machining accuracy.
* Not available for the100 series

Available turrets

Three types of turrets are available for different applications

The standard is a bolt-on turret, with a VDI turret available as an option. The drum turret is designed for the minimum interface. By using non-lift rotary indexing, high speed turret clamping / unclamping can be performed without interference. Additionally, thanks to random selection / shortest path indexing, chip-to-chip time when changing tools is extremely fast.

Bolt-on turret
VDI turret

Smooth Mill Drive – Turret milling integral spindle / motor

An integral spindle / motor is utilized for the turret milling spindle to minimize vibration for high accuracy. This enables stable cutting and high-accurate milling. Temperature controlled cooling oil is circulated around the spindle bearings and housing to minimize any thermal change.

A variety of optional automation equipment can be chosen to increase productivity

Ez LOADER

Ez LOADER is a space-saving automation system with collaborative robots. With the specialized software, Ez LOADER eliminates tedious robot teaching tasks and can be easily set up by anyone.

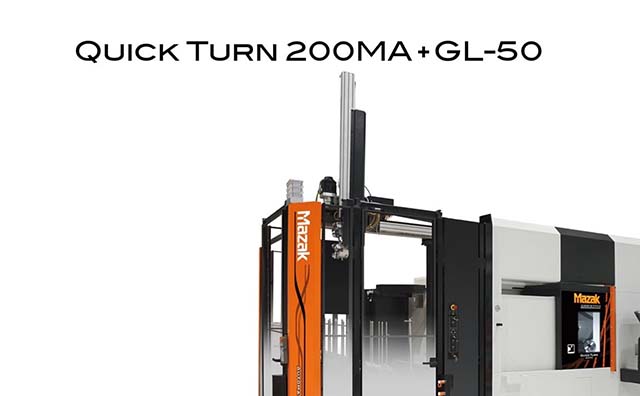

Gantry Loader System

The unique structure of the gantry loader system provides unparalleled flexibility, enabling positioning conveyors on its left and right, adding measuring instruments, and connecting two machines. By adding automatic door and robot interfaces, the gantry loader can be retrofit on already installed machines.

High-speed and high-accuracy simultaneous 4-axis CNC system

MAZATROL SmoothG

The touch panel is intuitive, and the 3D model display allows you to create programs while checking the machining shape and process. It prevents program errors and shortens program creation time. G code programming is also available.

MAZATROL DX transforms the manufacturing process

MAZATROL DX is a flat-rate digital service that revolutionizes the work process. It supports your work from automatic programming to setup work on the machine. In addition, it has essential functions for part machining, such as automatic quotation that automatically generates machining cost estimation.

QUICK QUOTE

Anyone can easily and quickly create quotations from 3D models. Machining cost, machining time and required tools are automatically calculated in about 30 seconds. The program and other information used in the quotations is accumulated, so it can be used in later processes.

SOLID MAZATROLAutomatic / conversational programming

MAZATROL programs are automatically generated from 3D models created with commercially available CAD/CAM software. An optimal program is generated by learning the appropriate machining pattern for the machining shape from programs created in the past.

SETUP GUIDE(Tools・Fixtures・Materials Mounting / Automatic Measurement)

Automatic generation of setup instructions enables smooth installation and measurement work. It supports efficient, error-free on-machine setup.

Chuck size: 6-inch

Spindle 15 kW (20 HP)
Boring bar shank diameter Φ32 mm / Turning tool shank size 20 mm

  • Milling
  • Second Spindle
QUICK TURN 100MS
Chuck size6″
Max. machining diameterΦ280 mm
Max. machining length409 mm
Machine Specifications
  • Milling
  • Y-axis
QUICK TURN 100MY
Chuck size6″
Max. machining diameterΦ280 mm
Max. machining length340 mm
Machine Specifications
  • Milling
  • Second Spindle
  • Y-axis
QUICK TURN 100MSY
Chuck size6″
Max. machining diameterΦ280 mm
Max. machining length409 mm
Machine Specifications

Chuck size: 8-inch

Spindle 15 kW (20 HP)
Boring bar shank diameter Φ40 / Turning tool shank size 25 mm

QUICK TURN 200
Chuck size8″
Max. machining diameterΦ350 mm
Max. machining length541 mm /
1063 mm
Machine Specifications
  • Milling
  • Bolt-on

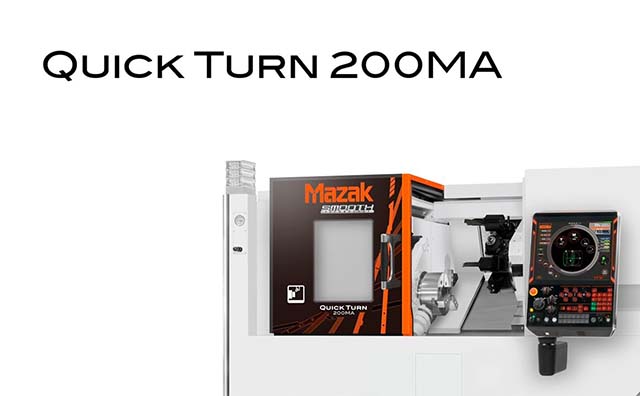

QUICK TURN 200MA
Chuck size8″
Max. machining diameterΦ360 mm
Max. machining length535 mm /
1055 mm
Machine Specifications
  • Milling
  • VDI
QUICK TURN 200MB
Chuck size8″
Max. machining diameterΦ380 mm
Max. machining length541 mm /
1047 mm
Machine Specifications
  • Milling
  • Y-axis
QUICK TURN 200MY
Chuck size8″
Max. machining diameterΦ380 mm
Max. machining length555 mm /
1020 mm
Machine Specifications
  • Milling
  • Second Spindle
  • Y-axis
QUICK TURN 200MSY
Chuck size8″
Max. machining diameterΦ380 mm
Max. machining length578 mm
Machine Specifications

Chuck size: 10-inch

Spindle 18.5 kW (25 HP)
Boring bar shank diameter Φ40 / Turning tool shank size 25 mm

QUICK TURN 250
Chuck size10″
Max. machining diameterΦ380 mm
Max. machining length510.5 mm /
1032.5 mm
Machine Specifications
  • Milling
  • Bolt-on
QUICK TURN 250MA
Chuck size10″
Max. machining diameterΦ360 mm
Max. machining length504.5 mm /
1024.5 mm
Machine Specifications
  • Milling
  • VDI
QUICK TURN 250MB
Chuck size10″
Max. machining diameterΦ380 mm
Max. machining length512 mm /
1018 mm
Machine Specifications
  • Milling
  • Y-axis
QUICK TURN 250MY
Chuck size10″
Max. machining diameterΦ380 mm
Max. machining length526 mm /
991 mm
Machine Specifications
  • Milling
  • Second Spindle
  • Y-axis
QUICK TURN 250MSY
Chuck size10″
Max. machining diameterΦ380 mm
Max. machining length547 mm
Machine Specifications

Spindle 26 kW (35 HP)
Boring bar shank diameter Φ50 / Turning tool shank size 25 mm

QUICK TURN 300
Chuck size10″
Max. machining diameterΦ420 mm
Max. machining length662 mm /
1282 mm /
1597 mm
Machine Specifications
  • Milling
  • Bolt-on
QUICK TURN 300MA
Chuck size10″
Max. machining diameterΦ420 mm
Max. machining length662 mm /
1282 mm
Machine Specifications
  • Milling
  • VDI
QUICK TURN 300MB
Chuck size10″
Max. machining diameterΦ420 mm
Max. machining length652 mm /
1247 mm
Machine Specifications
  • Milling
  • Y-axis
QUICK TURN 300MY
Chuck size10″
Max. machining diameterΦ430 mm
Max. machining length658 mm /
1253 mm /
1593 mm
Machine Specifications

Chuck size: 12-inch

Spindle 30 kW (40 HP)
Boring bar shank diameter Φ50 / Turning tool shank size 25 mm

QUICK TURN 350
Chuck size12"
Max. machining diameterΦ420 mm
Max. machining length614 mm /
1234 mm /
1549 mm
Machine Specifications
  • Milling
  • Bolt-on
QUICK TURN 350MA
Chuck size12"
Max. machining diameterΦ420 mm
Max. machining length614 mm /
1234 mm
Machine Specifications
  • Milling
  • VDI
QUICK TURN 350MB
Chuck size12"
Max. machining diameterΦ420 mm
Max. machining length604 mm /
1199 mm
Machine Specifications
  • Milling
  • Y-axis
QUICK TURN 350MY
Chuck size12"
Max. machining diameterΦ430 mm
Max. machining length610 mm /
1205 mm /
1545 mm
Machine Specifications

Chuck size: 12 / 15 inch

Spindle 37 kW (50 HP)
Boring bar shank diameter Φ50 / Turning tool shank size 32 mm

QUICK TURN 400
Chuck size12"
Max. machining diameterΦ580 mm
Max. machining length1024 mm /
2074 mm /
3124 mm
Machine Specifications
  • Milling
QUICK TURN 400M
Chuck size12"
Max. machining diameterΦ580 mm
Max. machining length996.5 mm /
2080.5 mm /
3096.5 mm
Machine Specifications

Chuck size: 18 / 21 inch

Photo: QUICK TURN 400M shown with optional equipment

Spindle 37 kW (50 HP)
Boring bar shank diameter Φ50 / Turning tool shank size 32 mm

QUICK TURN 450
Chuck size18"
Max. machining diameterΦ580 mm
Machine Specifications
  • Milling
QUICK TURN 450M
Chuck size18"
Max. machining diameterΦ580 mm
Machine Specifications
