Vertical Machining Centers
VCN
High-performance vertical machining centers with enhanced cutting performance
- Spindle rigidity and best balance of rigid machine structure for heavy-duty machining capacity
- Large machining area and table size with extended Y-axis travel
- Machine specifications and functions for stable high-accuracy machining
Tool shank (standard)
Maximum 54% increase in machining capacity, BT40 spindle as standard equipment

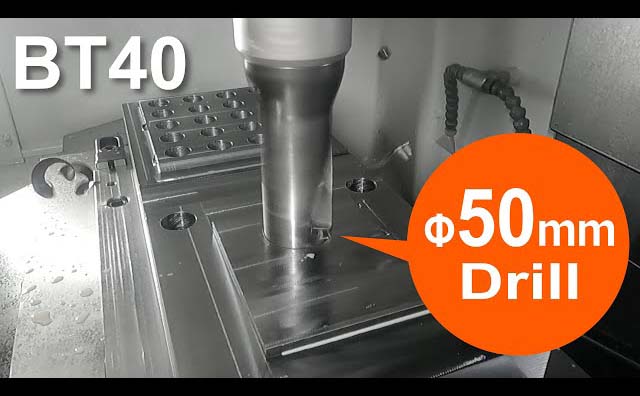

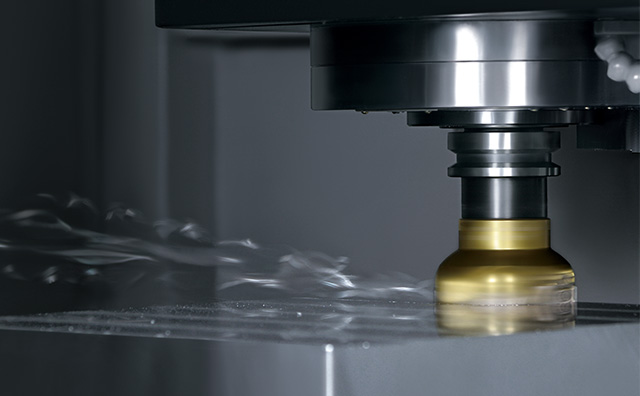

The 18.5 kW, 12000 min-1 specification standard spindle on the VCN-460 and VCN-600 has achieved 41% improvement in machining capacity for Φ80 mm face mills and 54% improvement for Φ50 mm end mills, compared to the conventional machines. In addition, Φ50 mm U-drilling and M30 tapping are available. The 18000 min-1 spindle with a built-in motor minimizes heat generation and vibration during high-speed rotation, making it ideal for metal mold and aluminum machining. (The 18000 min-1 spindle is an optional feature for the VCN-460 HDCC and VCN-600.)
| Φ80 mm face mill | Machining Capacity | Workpiece material: S45C | ||
| Conventional spindle | 361 cm3 | - | ||
| New spindle | 508 cm3 | 41% UP | ||
| Φ50 mm end mill | Machining Capacity | Workpiece material: S45C | ||
| Conventional spindle | 418 cm3 | - | ||
| New spindle | 645 cm3 | 54% UP | ||
High-performance built-in motor spindle with an output of 30 kW BT50 as standard equipment

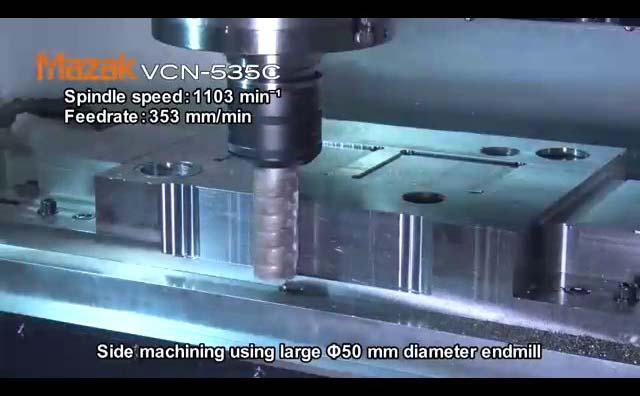

VCN-535C and VCN-700D are available in a total of four spindle types: a standard 8000 min-1 spindle for various materials ranging from steel to aluminum, and high-speed and high-torque specifications. It can be used for a wide range of applications from high speed machining to heavy cutting.
| Model | Spindle | |||
|---|---|---|---|---|
| 7000 min-1 | 8000 min-1 | 10000 min-1 | 18000 min-1* | |
| VCN-535C | - | ● | 〇 | - |
| VCN-700D | 〇 | ● | 〇 | 〇 |
●: Standard, 〇: Option, -: Not supported *BT40 only
Spindle rigidity and best balance of rigid machine structure
3D design with structural analysis

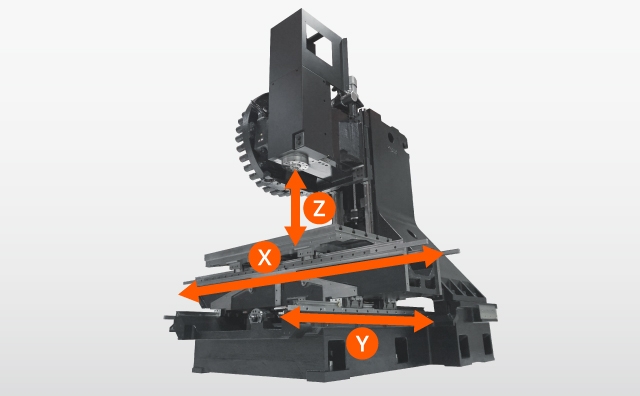

Using CAD FEA, the main machine components such as the bed and column are designed to minimize distortion. Compared to the conventional model, distortion on the column caused by heat displacement has been improved by 40%.
The low-vibration, high-performance spindle reduces thermal expansion by adopting outer cylinder cooling with machine temperature synchronization. Stable machining accuracy can be obtained.
* VCN-460
* Photo shows VCN-460.
Large machining area and table size

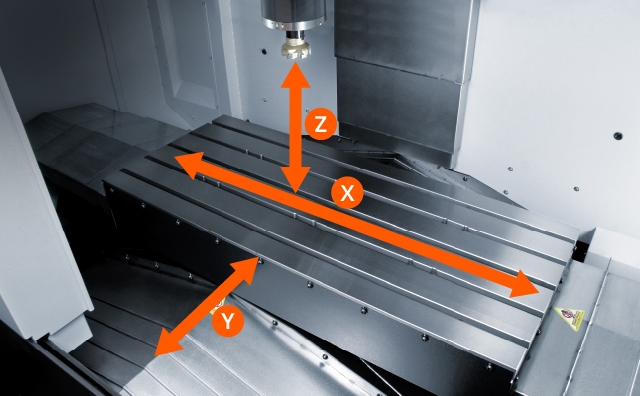

The VCN series tables provide a large machining area with extended Y-axis stroke. Large fixtures and workpieces can be mounted. The optimal table size can be selected according to the workpiece.
| Y-axis stroke | Table size | Max. workpiece dimensions | |
|---|---|---|---|
| VCN-460 | 460 mm | 900 mm × 460 mm | 900 mm × 460 mm × 570 mm |
| VCN-600 | 600 mm | 1300 mm × 600 mm | 1300 mm × 600 mm × 570 mm |
| VCN-535C | 530 mm | 1300 mm × 550 mm | 1300 mm × 550 mm × 570 / 770* mm |
| VCN-700D | 700 mm | 1740 mm × 700 mm | 1740 mm × 700 mm × 770 mm |
* Maximum workpiece dimensions for high column specifications.
Ultraspindle*
Electric motor spindle for high precision finishing
Two types of high-speed rotation are available; 60000 min-1 and 80000 min-1. It is suitable for surface finishing, micromachining, drilling, and mirror-finished machining, achieving excellent surface quality and high-precision. The ATC-enabled structure allows for rough machining, semi-finishing, and even super-finishing to be performed consecutively. It is highly effective when high-precision finishing using small diameter tools is required, such as for metal mold and semiconductor manufacturing equipment parts.
*Compatible models: VCN-460, VCN-600
Two types of high-speed rotation
60000 min-1 / 80000 min-1
- A single machine integrates all processes from rough machining to finishing
- No special program is required, and machining is performed with the same program as for regular tools
- The ATC-compatible compact spindle eliminates the need for operator intervention for setup changes before and after machining.

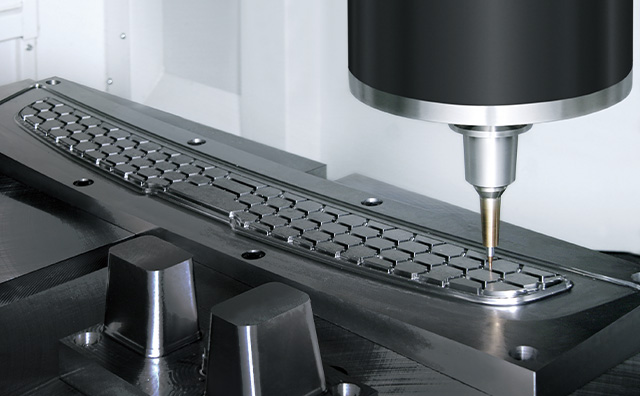

Machining example: Reflector metal mold for automobile lights (mirror-finishing)
| Size | 35 mm × 31.5 mm × 20 mm |
| Workpiece material | STAVAX (52HCR) |
| Tools | Φ2 mm ball end mill |
| Spindle speed | 60000 min-1 |
| Surface roughness | Ra 0.05 μm (average value of measurements at three locations) |

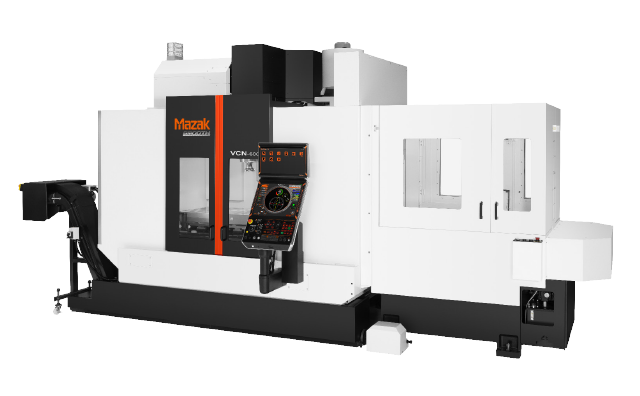

2-pallet changer*

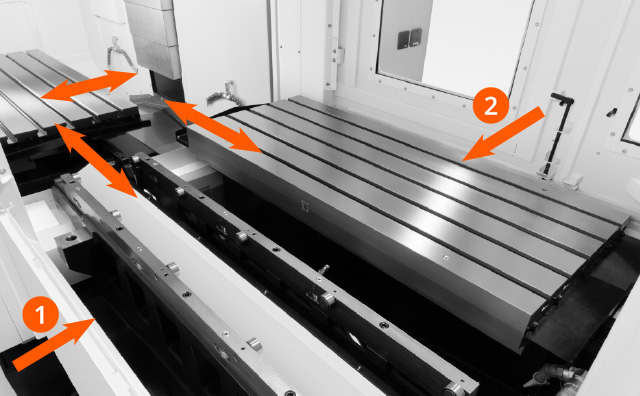

Productivity is improved as the next material can be mounted and the finished product can be removed even while machining. The machine itself and the pallet changer can be accessed from the front, and the pallet changer can also be accessed from the back, allowing smooth setup with two pallets.
* Option
| VCN-600 2-pallet changer | |
|---|---|
| Pallet size | 1300 mm × 550 mm |
| Pallet maximum loading weight | 800 kg |
| Pallet top face shape | 18 mm T-slot × 5, 100 mm pitch |
| Pallet exchange time | 17 seconds |
CNC systems that can be selected according to ease of use and processing applications
CNC system can be selected from standard models to high speed and high precision control functions. Equipped with "QUICK MAZATROL" for enhanced programming of MAZATROL.
Reference Video
VCN-460
VCN-600
